Galvanized iron wire, soft annealed, electro galvanized and hot
dipped galvanised, pvc or epoxy coated into colors. Made of high carbon, medium and low carbon steel.

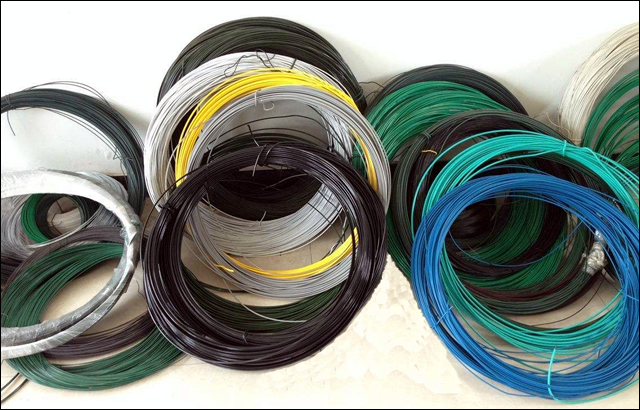

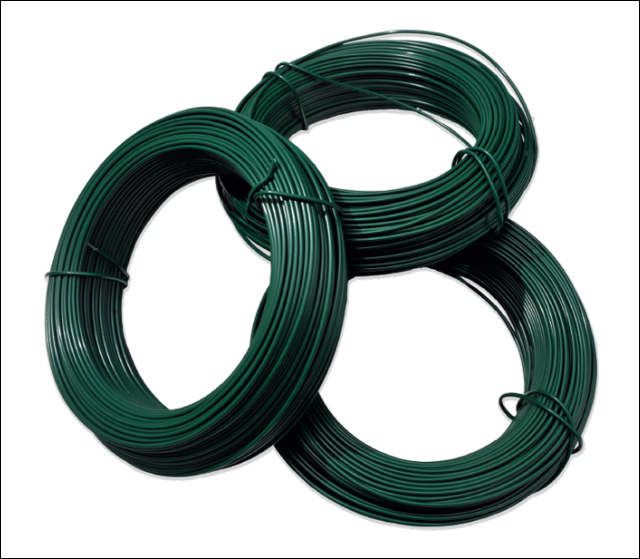

PVC Coated Iron Wire

PVC coated iron wire has the core wire of electric galvanized wire or hot dipped galvanized wire, with plastic coating as outer layer. The PVC coating and the inside wire are firmly combined together offering a protective layer and longer service life.
PVC / PE coated or painted wire is made in forms easy for binding and tying uses. The wire is popularly cut into cut wire, cut and looped into looped wire, or wound in coils, around sticks.
Materials: Annealed wire, galvanized wire, lacquered wire
Specifications and colours are depend on customers’ requirements.
Common size: BWG6 to BWG32.

WE ARE EXPORTING:

Pvc-Coated Galvanized Wire

25kg coil plastic coated galv.iron wire
Pvc coated iron wire, with pre-galvanised wire as core wire, Diameter and coating color:
1.8 / 2.2 mm, Brown
1.8 / 2.2 mm, Green
2,75 / 3.15 mm, Green.

PVC Coated Galvanized Wire in Big Coils
Diameter 3.76/4.16mm
Tensile strength 45 to 50 kg/m2
Base wire zinc coating: 70g/m2
PVC Color - RAL 6005
Specifications BS EN10244 Class C.
Packing in 500KG coil
Coil ID : 400-500mm

Green Florist Wire: in spool, sticks, coils
Surface: Plastified (Plastic Coated), mostly in green color
Wire length 25m
Tensile 37-43kgs/mm2
Elogation 16.6-17.5%

Plastified Garden Tying Wire

Specification
0.8mm / 1.2mm 0.9mm /1.3mm
1.0mm / 1.6mm 1.2mm / 2.0mm
1.4mm / 2.0mm 1.6mm / 2.4mm
1.8mm / 2.6mm 1.9mm / 2.9mm
2.0mm / 3.0mm 2.2mm / 3.2mm
2.4mm / 3.5mm 2.6mm / 4.0mm
2.8mm / 4.2mm 3.0mm / 4.2mm

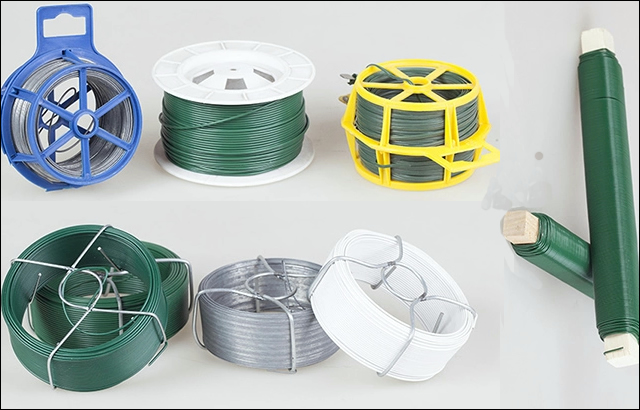

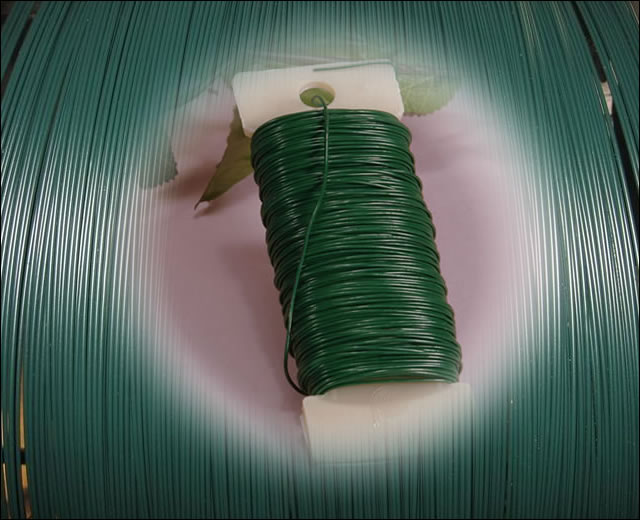

Green Painted Paddle Shaped Floral Wire

Green PVC Coated Floral Wire
22 Gauge floral wire for tying and securing stems of flowers and greenery.

Floral wire: stem wire, painted green, in 18 inch
Sizes:
16 gauge green painted stem wire in 18 inch
18 gauge green painted stem wire 18 inch
20 gauge green painted stem wire 18 inch
22 gauge green painted stem wire 18 inch
24 gauge green painted stem wire 18 inch

1/4, 1/2, 3/4, 5/8 Pvc Coated Steel Wire Rolls


18 Gauge PVC Coated wire for binding and tying

PVC Coated Steel Wire for Outdoors in Greenhouses and Tunnels
PVC coated wire of size 2.5 / 3.5mm

Hot Dipped Galvanized Steel Wire with PVC Coating:
Dia 2.0mm
Dia. 1.6mm



PVC Coated Steel Wire for Making PVC Clothes Hangers
PVC Coated Wire (2.6 - 2.7 - 2.8 mm)
Export to Saudi Arabia
For making wire clothing hangers
Wire hangers sizes (2.6 - 2.7 - 2.8 mm)

PVC Coated Wire for Packing Purpose

Core diameter: 0.8 or 1.0 MM
Coated wire diameter: 1.2 / 1.4 MM
Core wire material: Galvanised wire / mild steel wire

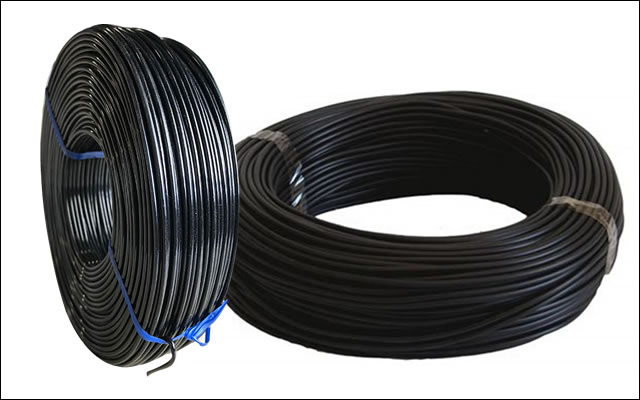

16 Gauge PVC Coated Galvanized Iron Wire

PVC coated steel wire hot dipped galvanized
Specifications:
100lbs coils 16 gauge 0.062 inch diameter steel wire, coated with PVC in black color.
White color available.
Material: C1008 Carbon
Packing in coils of 100lbs.

REFERENCES

Core wire diameter Diameter after coated
0.8mm 1.2mm
1.0mm 1.4mm
1.4mm 2.0mm
2.0mm 3.0mm
2.5mm 3.5mm
Color: Dark green, blue, yellow, and so on
Packing:
1. lined with P.V.C strips and wrapped with PVC or hessian cloth
2. small coils of 50m, 100m, 150m, 200m, and so on
3. in spider packing then into cartons

Type of coating: Polyvinyl chloride coating.
Colors: Green, gray, white, blue, black, yellow, red, etc.

Wire diameter range: 0.3mm - 4mm.

Wire gauge: 8-20 gauge.

Tensile strength: 300-500 Mpa

Elongation: >12%.

PVC coated layer: 0.4mm - 1.5mm.(+0.05mm/-0.05mm Max).

Galvanised iron wire with pvc / pe coating layer has much longer service life compared with common galvanized wire.
Features: Low cost, resilient, fire retardant, good insulating, anti-aging, corrosion-resistant, anti-cracking property.

Click to learn about Main Parameters for Plastic Coated Steel Wire
