Galvanized Steel Wire for Armouring of Power Cables, Tests and Standards

Everbright supplies galvanized steel wire used for armouring of power cables. We supply this special wire meeting specific technical requirements: the wire diameter, tensile strength, elongation rating, zinc coating and resistivity requests. All the gal. steel wire for cables armoring shall also pass dip test, torsion test, wrapping test and adherence test.

Technical Requirements for Galvanized Steel Armouring Cable Wire of Series Size 1.25±0.07 / 1.6±0.09 / 2.0±0.10 / 2.5±0.13 / 3.15±0.16:
This specification specifies the requirements of Galvanized steel Wire for armouring of Power Cables.

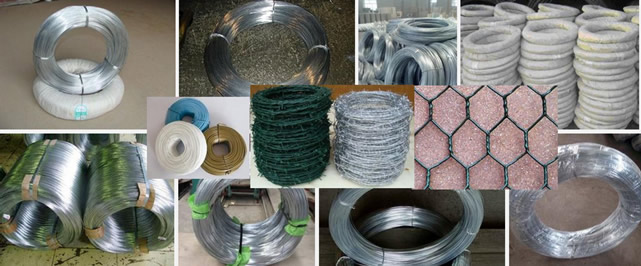

Coil Steel Wire for Cable Reinforcing

MATERIALS:

Steel Wire shall satisfy the related Chinese or International Standards.
The armouring materials shall have a smooth surface, uniform diameter, free from the scratches, black spot, pimples, rust strain and other irregularities.

PROPERTIES:
The material shall satisfy the following requirements:

NO.	PROPERTY	REFERENCE	UNIT	REQUIREMENT
1.	Diameter	BS:6724 & BS:5467	mm	1.25±0.07/1.6±0.09 / 2.0±0.10 /2.5±0.13 /3.15±0.16
2.	Elongation at break (Min.)	-- do --	%	----------------10------------------
3.	Tensile Strength	--do--	N/mm2	-----------300 - 500-------------
4.	Dip Test	-do--	Minutes.	1½ / 2 / 2 / 2½ / 3
5.	Torsion Test (min)	-- do --	Nos.	4 3 / 37 / 30 / 24 / 19
6.	Wrapping Test	-- do --	No. of turn	Shall not be break in one turn
7.	Adherence Test	-- do --	No. of turn	Coating shall not be crack in one turn
8.	Mass of zinc coating(min)	–do--	gm/mtr²	150 / 172 / 180 / 195/ 206
9.	Resistivity (max)	--do--	ohm-cm	----------14.5x10-6------------

TEST CERTIFICATE

Each consignment of material shall be with a test certificate.
JOINT:
The joints of steel wire are not allowed.

PACKING
Coils Dimensions:-
a) Inner Dia - 500±25 mm
b) Outer Dia- 600±25mm

Galvanized wire for Armouring of cables shall be supplied in coils. All the coils shall be tied at minimum four places. Each coil shall be wrapped with water proof material.

MARKING:

All the coils shall carry the labels with the following information :

i)Name of the Manufacturer
ii)Coil No.
iii) Size wire
iii)Net Weight

Technical Requirements for Galvanized Steel Armouring Cable Wire of Series Size of
1.21 ± 0.02 /1.54 ± 0.02/ 1.93±0.02/2.42 ± 0.03 /3.06 ± 0.04:

The following specification specifies the requirements of Galvanized steel Wire for armouring of Power Cables.

MATERIALS:

Armouring Steel Wire shall satisfy the specification no. BS:6724 & BS-5467- 1997

The armouring materials shall have a smooth surface, uniform diameter, free from the
scratches, black spot, pimples, rust strain and other irregularities.

PROPERTIES:

The galvanized wire special for armoring of power cables shall satisfy the following requirements:

NO.	PROPERTY	REFFERENCE	UNIT	REQUIREMENT
1.	Diameter	BS-6724 & 5467	mm	1.21 ± 0.02 /1.54 ± 0.02/ 1.93±0.02 /2.42 ± 0.03 /3.06 ± 0.04
2.	Elongation at break (Min.)	--do---	%	---------10------------
3.	Tensile Strength	---do---	N/mm2	------300 - 500-------
4.	Dip Test	---do---	Minutes.	1½ / 2 / 2 / 2½ / 3
5.	Torsion Test (min)	---do---	Nos.	43 / 37 / 30 / 24 / 19
6.	Wrapping Test	---do---	No. of turn	Shall not be break in one turn wrap around a cylindrical mandrel having diameter of apprx. 4 times of nominal wire diameter under test
7.	Adherence Test	---do---	No. of turn	Coating shall not be crack in one turn wrap around own nominal wire diameter under test
8.	Mass of zinc coating(min)	--do----	gm/mtr²	150 / 172 / 180 / 195 / 206
9.	Resistivity (max)	---do----	ohm-cm	---------14.5x10-6------------

TEST CERTIFICATE:

Each consignment of material shall be supplied with test certificate.

JOINT:
The joints are not allowed.

PACKING
Coils Dimensions:-
a) Inner Dia - 500±25 mm
b) Outer Dia- 600±25mm

The wire material shall be supplied in coils. All the coils shall be tied at minimum four places. Each coil shall be wrapped with water proof material.

MARKING:

All the coils shall carry the labels with the following information :

i)Name of the Manufacturer
ii)Coil No.
iii) Size wire
iii)Net Weight

----------------------------------------------------------------------------------------------------------------
