Galvanized iron wire, soft annealed, electro galvanized and hot
dipped galvanised, pvc or epoxy coated into colors. Made of high carbon, medium and low carbon steel.



Galvanized Steel Welded Wire Mesh: Hardware Cloth, Fences and Construction Reinforcing Fabrics

Galvanized Wire Mesh Welded, offers a strong, firm and rigid square opening structure through welding process of the horizontal and vertical wires. Rectangular opening also available.

Materials of Galvanized Welded Mesh:
Electro galvanized;
Hot dipped galvanized;
Zinc- aluminium ( Galfan ) galvanized;
PVC / vinyl / epoxy coated galvanized.

Welded Wire Mesh galvanized and powder coated is widely used as garden fences, border fences and security fences. Hot dipped galvanized welded mesh panels are popularly used as Hardware Cloth, fencing mesh, plaster mesh, construction reinforcement mesh, gabions and other applications.

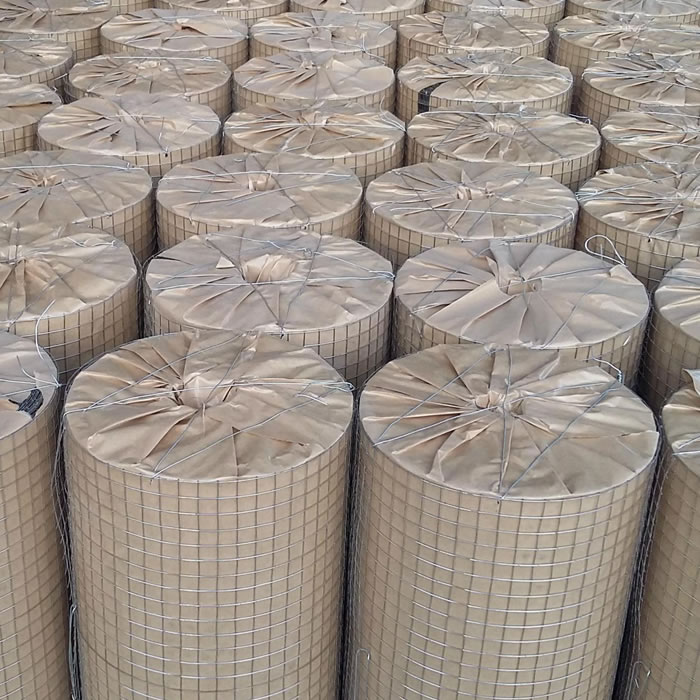

GAlv. square wire mesh,WELDED

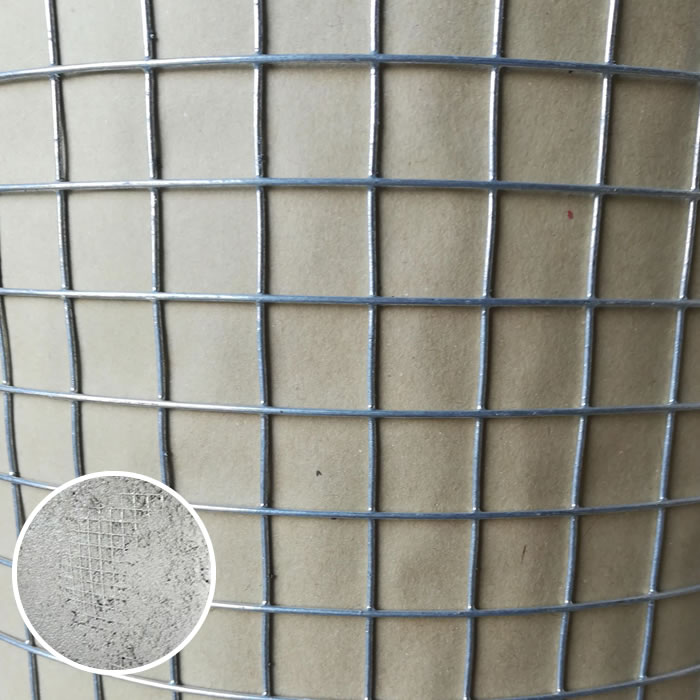

Hot Dipped Galvanized Welded Wire Mesh

Galvanized Carbon Steel Wire Mesh, Welded, Square Hole Netting
Hot Dipped Galvanized After Welding Mesh, in square hole, 12mm x 12mm x 1.0mm, Minimum zinc coating 150 gms/m2

Square hole welded mesh, hot dip galvanized
Wire Diameter: 2.5 mm
Square hole size: 17.00 mm x 17.00 mm
Mesh roll width: 496 mm
Mesh roll length: 1310 mm

Rectangular hole weld mesh, hot dip galvanized
Wire Diameter: 2.5 mm
Rectangular hole size: 16.7 mm x 17.2 mm
Mesh roll width: 496 mm
Mesh roll length: 1310 mm

Galvanized carbon steel wire mesh, welded sheet
Hole: 2" x 1"
Wire diameter: 2.0mm
Sheet size: 4ftx12ft

Welded steel welded mesh for fishing trap
Hole: 3/8 x 3/8

Hot Dipped Galvanized Wire Mesh, ASTM A510M
Minimum Wire Thickness 1.00 mm
Opening 12 x 12 mm
Minimum Zinc Coating 150 gms / m2
Mesh rolls: 1220 mm x 30.48 m
Finish: Hot dip galvanizing after welding mesh
Finish also available: Welded electro galvanized wire

Wire Mesh Welded, Electro Galvanized Before Welding

Wire Mesh, Welded, Zinc-covered, Electro galvanized before welding
Mesh 6.4mm x 0.6mm wire thickness, in rolls 1 m x 25 m
Mesh 9.5mm x 0.7mm wire thickness, in rolls 1 m x 25 m
Mesh 12.7mm x 0.7mm wire thickness, in rolls 1 m x 25 m
Mesh 16mm x 0.8mm wire thickness, in rolls 1 m x 25 m
Mesh 19mm x 1.1mm wire thickness, in rolls 1 m x 25 m
Mesh 19mm x 1.45mm wire thickness, in rolls 1 m x 25 m
Mesh 25mm x 1.45mm wire thickness, in rolls 1 m x 25 m

Wire Mesh Welded, Electro Galvanized After Welding

Wire Mesh, Welded, Zinc-covered, Electro galvanized after welding
Mesh 6.4mm x 0.6mm wire thickness, in rolls 1 m x 25 m
Mesh 9.5mm x 0.7mm wire thickness, in rolls 1 m x 25 m
Mesh 12.7mm x 0.7mm wire thickness, in rolls 1 m x 25 m
Mesh 16mm x 0.8mm wire thickness, in rolls 1 m x 25 m
Mesh 19mm x 1.1mm wire thickness, in rolls 1 m x 25 m
Mesh 19mm x 1.45mm wire thickness, in rolls 1 m x 25 m
Mesh 25mm x 1.45mm wire thickness, in rolls 1 m x 25 m
Packing: Each roll is wrapped by waterproof paper.

WELD MESH HARDWARE CLOTH

Galvanized Hardware Cloth

Hardware cloths can be welded mesh or woven wire mesh. Galvanized hardware cloth of woven wire is mostly used as window screening, sifting screen in grain and other industrial screening. Hardware cloth, welded mesh type, has stronger structure compared with woven wire mesh. Apertures are bigger and wires applied for Welded Hardware Cloth come commonly with thicker diameter than Woven Hardware Cloth. Hardware cloth galvanized welded mesh is mostly used for chicken coops, rabbit netting, tree guards, gopher control and fencing uses.

1/4 inch mesh hot dip galvanized welded hardware cloth screen
¼" galvanized mesh hardware cloth, wire gauge 23, 24, 26

Galvanized Mesh Hardware Cloth Screen, Welded, Cut to Length
Specifications:
¼" mesh x 23 gauge x 3" x 11.5", Hot Dip Galvanized Welded Hardware Cloth Screen.
Sheet sizes: 11.5", 15.5", 36", 48", 3” x 13” cut to length

GALv. WELDED MESH FOR CONSTRUCTION

Galvanized Weld Wire Mesh Panels for Building - Concrete Reinforcing Mesh, Pavement Mesh, Wall Plastering Netting

Galvanized Square Hole Wire Mesh, Heavy Galvanised, Concrete Reinforcing Mesh Panels
Square Opening Galvanized Wire Mesh, Welded, 2.5 mm x 17.00 mm x 17.00 mm, Sheet 496 mm x 1310 mm

Galvanized Weld Mesh Panels for Concrete Reinforcement
Mesh panels for concrete reinforcement:
Square mesh 60x60mm, 120x120mm
Lateral mesh 60x120mm
Electro-welded galvanized wire diameter 1.35mm to 1.40mm +/-0,02mm
Thickness of galvanizing treatment on the wire: 12/15 g/sqm
Panel size: 2m x1m per panel

Galvanized Weld Mesh Panels
Wire: 3.50 mm OD (Hot Dip Zinc Coated Galvanized to 275 grams per sq. Meter)
Mesh Opening: 50 mm x 50 mm
Length of Panel: 6.05 meter
Width of Panel: 2.00 meter

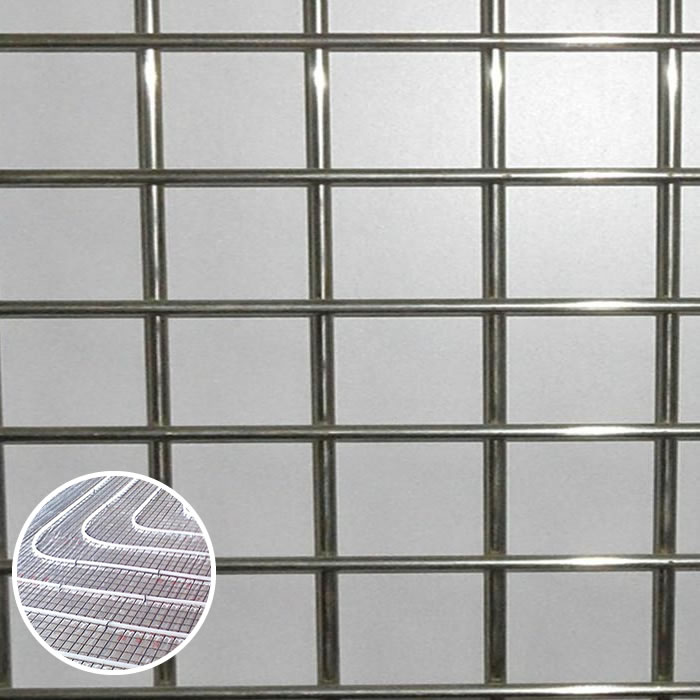

Slab Reinforcement Mesh
6x6 welded slab mesh sheet;
1/4 inch brick wall reinforced welded wire mesh;
Reinforcement mesh galvanized 12", 1x1, mesh 75mm x 75mm, square hole welded.

6x6 welded wire mesh panels for slab reinforcement

GALVANIZED WELDED MESH FENCES

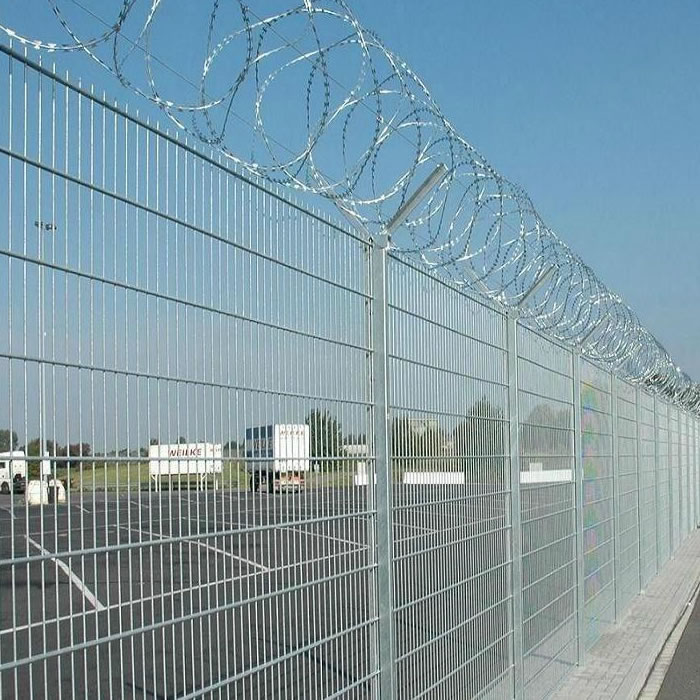

Galv. Welded Wire Mesh Fence
Fencing mesh rolls:
Galvanized welded mesh 50x25mm opening, 2,5mm wire thickness, 1.8m wide x 30m long rolls
Galvanized welded mesh 25x25mm opening, 2.1 mm wire thickness, 0.9m wide x 30m long rolls
Galvanized welded mesh 25x25mm opening, 1.6mm wire thickness, 0.9m wide x 30m long rolls
Used for roads fencing, railway fencing, temporary fence panels, portable fence and various perimeter fences.

Hot Dipped Galvanized Mesh Perimeter Fence
Welded mesh fences is available in surface treatments: PVC/ vinyl coated, hot dipped heavy galvanized and electro galvanized. Hot dipped zinc coated welded mesh fence offers thicker zinc plating than electro galvanized fence and stronger zinc plating adhesion. Plastic / vinyl / epoxy coated mesh fences have multi color options compared with galvanized welded fences.

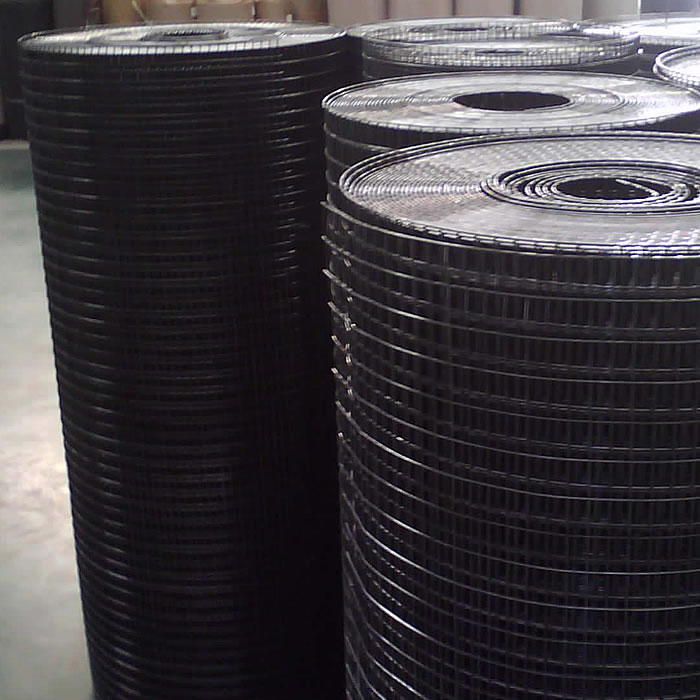

PVC Coated Galvanized Welded Mesh Fence
Galvanized welded wire mesh and PVC Coated Welded Wire Mesh
Fence height 3 ft, 4 ft
Meshes: 1/2' X 1/2' , 3/4' X 3/4' , 1' X 1', 1/2 X 1'
Wire diameter: 1.2 mm , 0.9 mm, 0.7 mm.

Black UV PVC Coated Galvanized Welded Wire Mesh Fence Panels
½ inch x ½ inch aperture
19 BWG wire
Panel size: 20cm (8in) x 30 meter
20 cm wide roll
Finish: Black UV PVC coating
For garden border trellis fencing

Metal Mesh with Epoxy Coating (Grey/Black PVC )
Low carbon steel welded mesh hot dip Zinc galvanized.
Wire: 0.8mm
Square opening
Mesh size: 10mm
Finish: Epoxy /pvc coated in grey or black color
Featuring high temperature and UV resistance

Vinyl Coated Wire Mesh Fence, Welded Before Hot Dipped Galvanized

Galvanized Mesh Fencing, Mesh 12.7x76.2mm x 5mm
Galvanized post : 55 [mm] x 55[mm] x 1.5 mm x 2.20 m height
Mesh vinyl painted: RAL 2008
Finish: Hot dipped Galvanized After Welding and Vinyl Coated
Wire diameter: 5 mm
Hole opening : 12.7x76.2mm
Panel: 3D panel design with multiple bends and curves
For perimeter security fencing
Including tamper resistant hardware, brackets and fittings.

Welded Mesh Security Fence System
Fence mesh:
• Maximum aperture size: 80 mm x 12 mm (WxH)
• Minimum wire thickness: 3mm.

Steel Posts
Available in following types:
•60x60mm and 50x50mm SHS steel Post
•40x60mm RHS steel post
•50x70 and 70x100 Peach shape post
•48mm and 60mm Round section post

Post Fittings
•Plastic Clamps and rain hat
•Metal Clamps and rain hat

Gates
Single slide gate : 2.4x2.4m high
Single slide gate : 3.5x2.4m high
Double slide gate : 3.6x2.4m high each side
Including wheels, track, doorstop, door opener, hinge, tamper resistant lock, brackets, roller, ect.
Pedestrian gate : 1.3m x 2.4m high

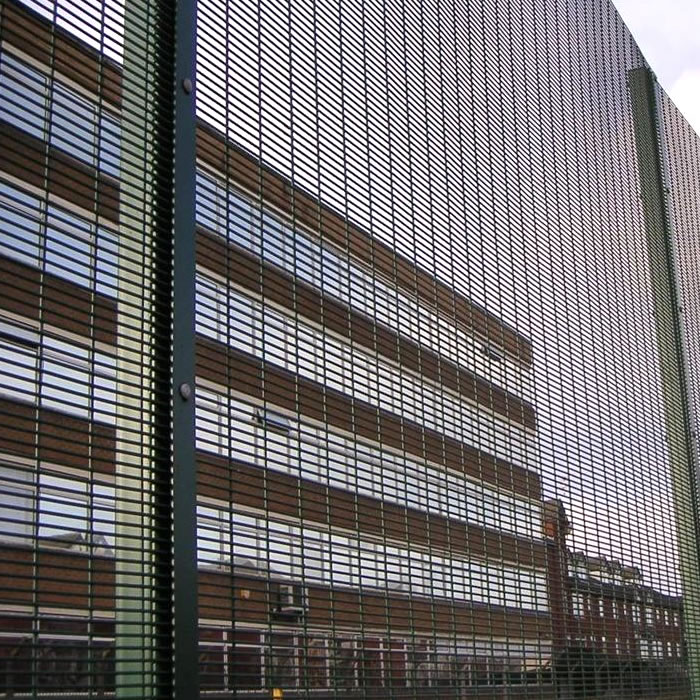

Anti Cut 358 Welded Mesh, Galvanized with PVC or Polymer Coating
Inner aperture:72.2×8.7mm
Wire diameter:4mmm
Width: to 2.9m
Tensile of the wire: 600-750N/m2
Welded strength: 60%-80%
Height: up to 4.8m
Fence post: 80 x 60mm, 80 x 80mm or 120 x 60mm.

Anti-Climbing High Security Welded Mesh Fencing, with Anti-Cut Close Mesh Opening 72.2×8.7mm
358 Fence, Galvanized Mesh, powder coated with marine grade pvc / polymer, ½” x 3” opening with 8 gauge galvanized + powder coating, and ½” x 3” 10.5 gauge wire plus heavy duty PVC coating. For prison fencing and other high security protection.
