Galvanized Wire Mesh
Galvanized Steel Wire Mesh Electro Galvanized Mesh with Square Opening

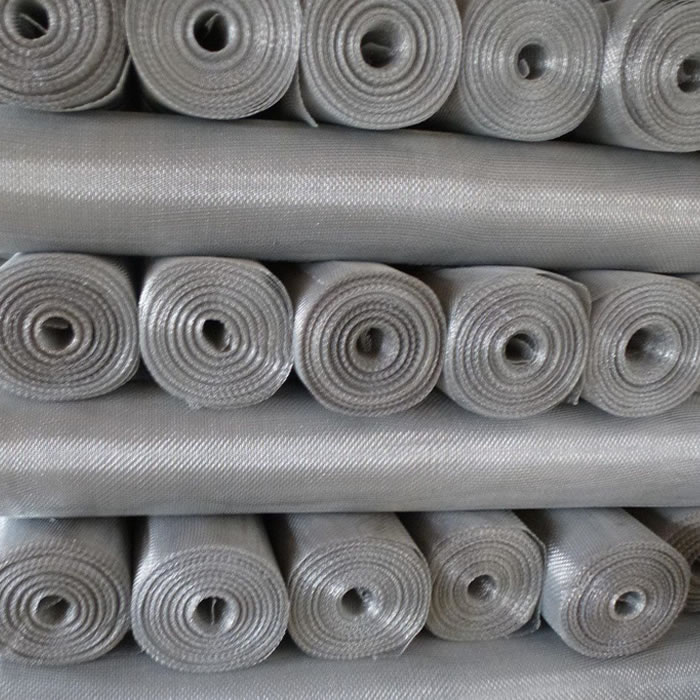

Galvanized Woven Square Hole Wire Mesh Rolls Woven Steel Mesh Window Screen, Plain Weaving, Electro Galvanized Before


Galvanized square hole wire mesh is widely used as window screen, industrial sieves in sugar, chemical, stone crusher industries, also in sieving and grading of grain. Usually, the galvanized wire mesh with mesh counts under 30 is used as insect screening fabric, while those with thick mesh courts are used for sieving or sifting uses. The galvanized mesh window screen requires less strength, it can be made with common galvanized steel wire. The galvanized sieving or filtering wire mesh needs to endure the flow of the sifted materials, thus needs much strength, and it is made with high strength steel wire or pre-crimped wire.

Assortment according to processing:
- Hot Dipped Galvanized After / Before Weave;
- Electro Galvanized After / Before Weave;

Zinc Thickness for the Galvanized Square Mesh:
Electronic galvanized : 8g/m2 - 15g/m2.
Hop-dipped galvanized : 25g/m2 - 300g/m2.

Material: Good quality low-carbon iron wire

Weaving Patterns: Plain weave, twill weave.

Opening: 0.3~6.87mm

Roll Size: Width: 0.6M-1.5M,  Length: 30M-60M

Features: Galvanized square woven wire mesh has fine features of neat & precise, sturdy structure, durable& strongly rust-resistant and fine anti-corrosiveness.

Use: Square hole wire mesh is widely used in breeding, construction and other industrial use. The wire mesh rolls can be further processed into wire mesh discs, used in filtering and sorting in rubber, oil, chemicals, grains.

Common Specification of Galvanized Plain Weave Wire Mesh:

Galvanized Square Wire Mesh
Mesh/inch Wire Dia. (mm) Aperture (mm)
2 1.6 11.1
4 1.2 5.15
5 1 4.08
6 0.8 3.43
8 0.6 2.57
10 0.55 1.99
12 0.5 1.61
14 0.45 1.36
16 0.4 1.19
18 0.35 1.06
20 0.3 0.97
30 0.25 0.59
40 0.2 0.44
50 0.16 0.35
60 0.15 0.27
Available in width:0.60m-1.5m
