Galvanized iron wire, as our primary products, falls into two major kinds according to the finishes. One is electro galvanized wire while the other is hot dipped zinc coated galvanized wire.


Home >> products


Galvanized Wire Mesh of Hexagonal Hole, Twisted Weave

We are exporter and supplier of good quality Hexagonal Mesh Wire Netting for Europe and other countries.

We have:
Complete quality control system;
Experienced technical staff;
Selected steel wire materials applied.

Weaving:
Straight twisted, reverse twisted, straight & reverse twisted.

Main Types:
Hexgonal wire mesh of BWG. 22, 20 Galvanized iron wire
3/4*90*24 & 3/4*90*26 hexgonal wire mesh
60x60 mm mesh hexagonal chicken nets
Rabbit and chicken netting
Gabion box hexagonal mesh
Galvanized PVC Coated hex mesh
Galvalnized Hex wire Netting, 1/2" ( 13mm), 3/4" (20mm), in rolls of 3 feet & 4 feet export to Nigeria
Plastic Coated Hexagonal Wire Mesh, 18 gauge wire, to Trinidad
Gi chicken wire mesh 22 gauge, hexagonal weave 3’4” mesh, in rolls 1.2 m x 200 m to Dubai
Chicken Mesh, ½” X 1/2 “ X 0.6 mm PVC Coated, to Qatar
Chicken wire mesh in fibre glass and plastic
Stainless steel chicken mesh, Chicken Mesh hole size 2”, wire material: Stainless Steel AISI 304, wire gauge: AWG 20 (0.0320” or 0.812 mm) in roll width: 2m x 25 m length for Chile

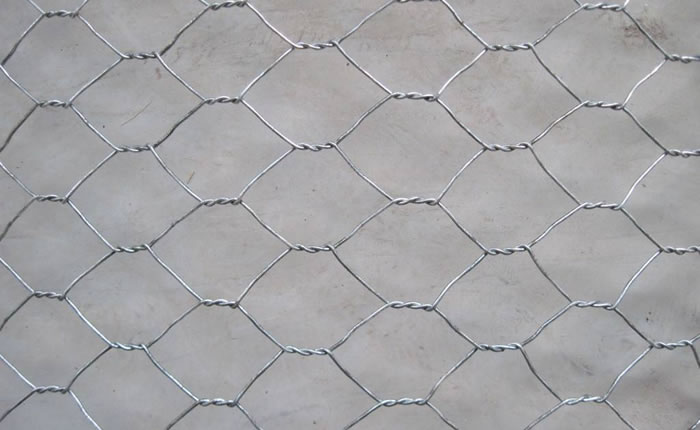

Hexagonal Wire

Hexagonal Mesh Electro Galvanized

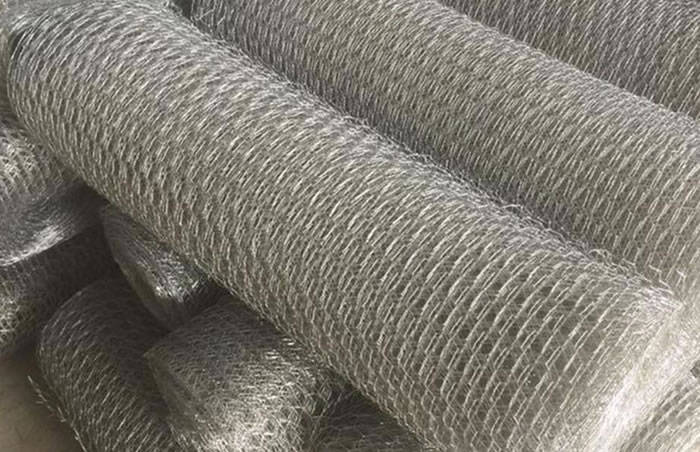

Galvanised hexagonal wire mesh
3/4 inch Hole size, twist woven
Wire diameter 0.46mm
Roll size: 1.2m x45m length
Exported to Iran and other countries.


3/4 inch hex mesh x 0.46 mm wire x 1.2 m x 45m rolls for Iran

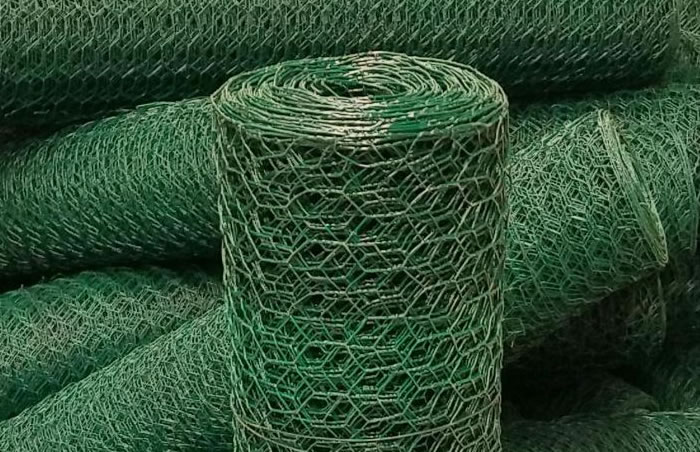

Hexagonal Wire Mesh with PVC Coating

Mesh 13mm, 0.8mm wire diameter with PVC Coating, inside wire non galvanizing, roll size 1x10m
Mesh 25mm, 1.0mm wire diameter with PVC Coating, inside wire non galvanizing, roll size 1x10m

Mesh 25mm x wire diameter 0.8mm, with pvc coating, cold galvanized wire inside, roll size 1x10m
Mesh 25mm, wire diameter 1.0mm, with pvc coating, cold galvanized wire inside, roll size 1x10m

Exported to Poland and other countries.

PVC Galv. Twisted Wire Netting for Poland
Mesh 25mm x wire diameter 0.8mm x 1x10m roll, wire material: PVC Coated Galvanized Iron Wire, cold galvanized wire inside plastic coating layer.

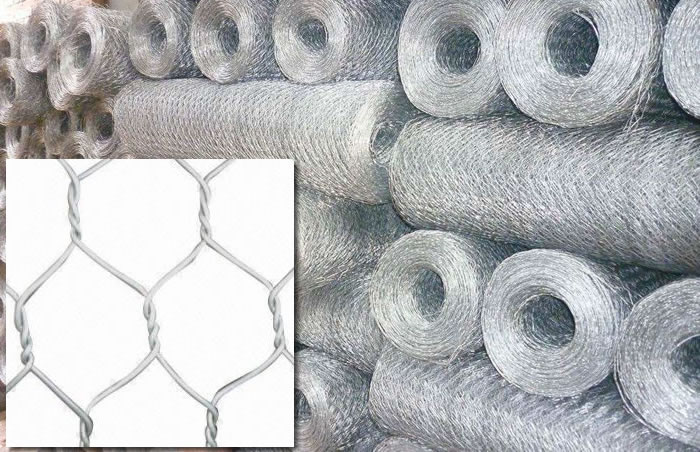

Galvanized Hexagonal Mesh for Reinforcing

Material: Galvanized hexagonal wire netting
Size: Hole 60x60 mm, 60x80 mm
Mesh Wire diameter 3.2 mm
mesh edge wire: Reinforced with wire diameter 4 mm.
Mesh Roll width 2 m
Market: Serbia and other countries.
Application: Asphalt pavement mesh, reinforcement grid netting used in road construction.

Double Twisted Mesh Grid Reinforcing Mesh
60x80 mesh x 3.2 mm wire diameter for mesh, building material for road construction.

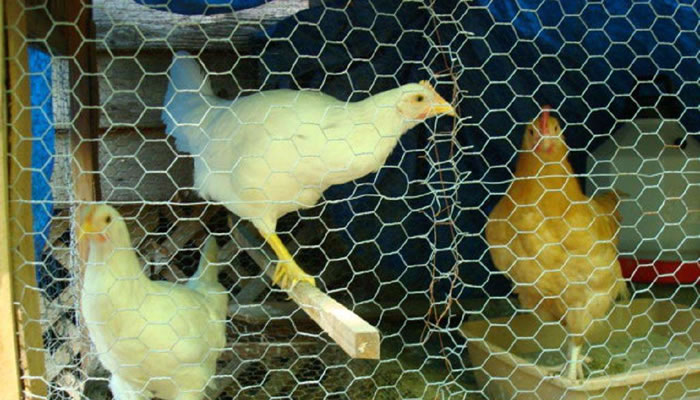

Chicken Fencing

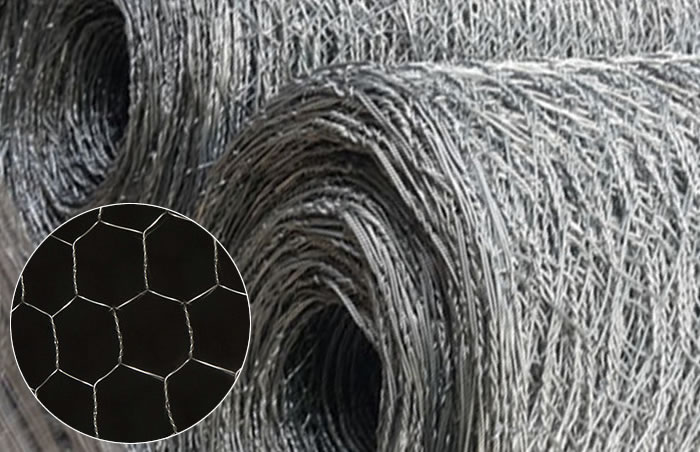

Galvanized Chicken Mesh to Nigeria

1/2 inch Hexagonal Hole 22 Gauge Chicken Wire

Hex Mesh 1.5cm 1/2"x 22 Gauge. Max. roll width: 2m, single or double edge.
Hex Mesh 2cm 3/4"x 20. Max. roll width: 2m, single, double edge, or reinforced.
Export to Nigeria and other countries.
For chicken coops and rabbit cages.

Hexagonal Vinyl Coated Chicken ( Poultry) Mesh

Chicken Fencing 1 inch galvanized mesh, poultry net

Material: Heavy gage vinyl coated hex wire netting
6 feet high, 150' feet rolls
Mesh: 36" 1" 20 gage, galvanized after weaving, pvc coated
Mesh: 24" 1" 20 gage, hexagonal wire netting.

Chickenwire Rolls 24 Gauge and 20 Gauge to Kenya

Two Types:
1/2 inch Mesh x 24gauge wire, 3feet width x 30 m length Chicken Mesh Rolls.
3/4 inch Mesh x 20gauge wire, 3feet width x 30 m length Chicken Mesh Rolls.
Export to Kenya and other countries.

Chicken Wire Farm Boundary Fencing Net

Chicken wire mesh with double leaf galvanized pipe door
Chicken wire mesh with single leaf galvanized pipe door
Farm fencing, site and perimeter fencing.
Mesh material: Galvanized, copper or stainless steel
Exported to Bahlin and other countries.

Gabions

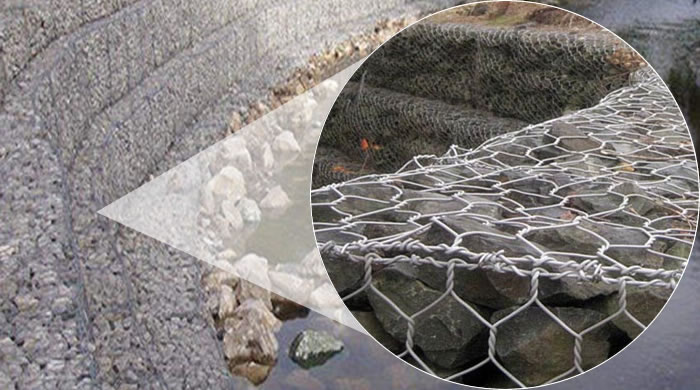

Hot dipped Galvanized Box Gabions

Twisted Woven Mesh Gabions

Material: Hot dipped galvanized wire mesh
Hole: Hexagonal
Mesh: Double - Torsion wire mesh 8X10cm
Wire diameter 3.00mm and wire selvedge diameter 3.90mm min
Boxes: Base 1.00m X 2.00m., Height 0.50m. galvanization weight 260gr/m²
Finish: hot dip galvanized wire mesh
Export to Greece and other countries
For canal lining and rock falling safety.

Gabions Wire and Selvedge

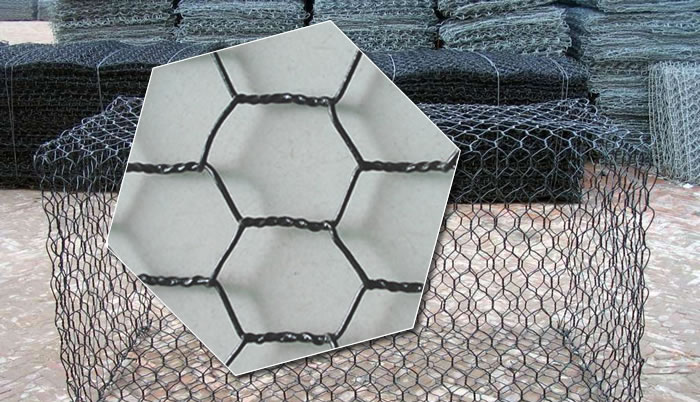

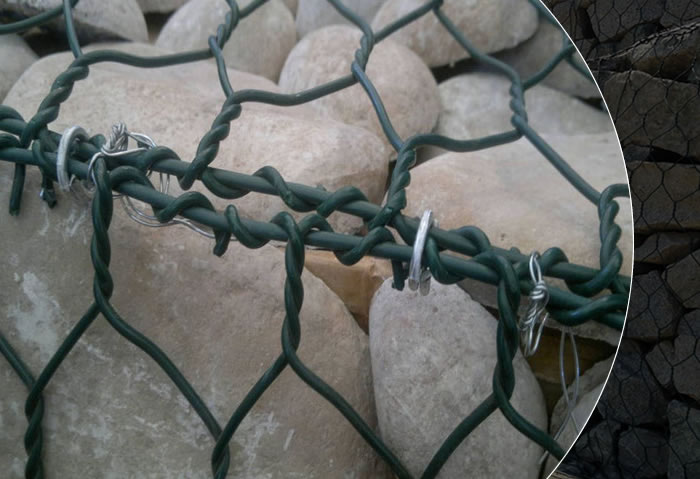

Basket Gabions Galvanized PVC Coated

Galvanized PVC Coated Gabions

Material: Hexagonal shape mesh fabric with opening size 80 * 100
Mesh wire 2.77 id, 3.77 od, selvedge wire, lancing wire
Finish: Galvanized PVC Coated.
Gabion Size:
3 x 1.5 x 1 m
2.25 x 1.5 x 1 m
2 x 2 x 1 m
Rarriers wall in river bank protection construction.

Hex Mesh Specifications

General Sizes

General Specification of Galvanized Hexagonal Wire Netting
Mesh Min. Galv.
G/SQ.M
Width Wire Gauge (Diameter)
BWG
Inch mm Tolerance(mm)
3/8" 10mm ±1.0 0.7mm - 145 2' - 1M 27, 26, 25, 24, 23
1/2" 13mm ±1.5 0.7mm - 95 2' - 2M 25, 24, 23, 22, 21
5/8" 16mm ±2.0 0.7mm - 70 2' - 2M 27, 26, 25, 24, 23, 22
3/4" 20mm ±3.0 0.7mm - 55 2' - 2M 25, 24, 23, 22, 21, 20, 19
1" 25mm ±3.0 0.9mm - 55 1' - 2M 25, 24, 23, 22, 21, 20, 19, 18
1-1/4" 31mm ±4.0 0.9mm - 40 1' - 2M 23, 22, 21, 20, 19, 18
1-1/2" 40mm ±5.0 1.0mm - 45 1' - 2M 23, 22, 21, 20, 19, 18
2" 50mm ±6.0 1.2mm - 40 1' - 2M 23, 22, 21, 20, 19, 18
2-1/2" 65mm ±7.0 1.0mm - 30 1' - 2M 21, 20, 19, 18
3" 75mm ±8.0 1.4mm - 30 2' - 2M 20, 19, 18, 17
4" 100mm ±8.0 1.6mm - 30 2' - 2M 19, 18, 17, 16

Sizes of Different Weaves

weaving mesh(SWG) wire guage(SWG) diameter widthxlength weight roll diameter
straight twist 1/2 22 0.41 3'x100' 15.00 150
straight twist 1/2 23 0.62 3'x100' 11.50 150
straight twist 1/2 24 0.56 3'x100' 9.30 140
straight twist 1/2 25 0.51 3'x100' 7.50 130
straight twist 5/8 22 0.71 3'x100' 13.00 150
straight twist 5/8 23 0.62 3'x100' 10.00 140
straight twist 5/8 24 0.56 3'x100' 8.10 130
straight twist 5/8 25 0.51 3'x100' 6.70 120
straight twist 3/4 21 0.81 3'x100' 14.80 170
straight twist 3/4 22 0.71 3'x100' 11.00 160
straight twist 3/4 23 0.62 3'x100' 8.70 150
straight twist 3/4 24 0.56 3'x100' 7.10 140
straight/reverse 1 20 0.91 3'x100' 14.50 160
straight/reverse 1 21 0.81 3'x100' 11.50 150
straight/reverse 1 22 0.71 3'x100' 9.00 140
straight/reverse 1 23 0.62 3'x100' 6.80 130
straight/reverse 1 24 0.56 3'x100' 5.60 150
straight/reverse 6/5 19 1.01 3'x100' 15.00 170
straight/reverse 6/5 20 0.91 3'x100' 12.50 160
straight/reverse 6/5 20 0.91 3'x100' 12.50 160
straight/reverse 6/5 21 0.81 3'x100' 9.90 150
straight/reverse 6/5 22 0.81 3'x100' 7.60 150
reverse twist 3/2 18 1.20 3'x100' 17.00 200
reverse twist 3/2 19 1.01 3'x100' 12.00 170
reverse twist 3/2 20 0.91 3'x100' 9.70 160
reverse twist 3/2 21 0.81 3x100' 7.70 145
reverse twist 3/2 22 0.71 3'x100' 6.00 140
reverse twist 2 18 1.20 3'x100' 12.00 180
reverse twist 2 19 1.01 3'x100' 8.50 170
reverse twist 2 20 0.91 3'x100' 7.00 150
reverse twist 2 21 0.81 3'x100' 5.50 145
straight twist 3 18 1.20 3'x100' 8.80 170
straight twist 3 19 1.01 3'x100' 6.00 170
straight twist 3 20 0.91 3'x100' 5.00 160
