Temporary Fence Panels Australian Standard AS 4687-2007 Hot Dipped Galvanized with Accessories - For Construction Site and Swimming Pools Construction Safety

We supply temporary fence panels for Australia and New Zealand construction projects, crowd control and fencing barriers. These fence panels made of modular framed welded mesh play an essential role in ensuring construction site safety, controlling public access, and maintaining the security.

General Specifications
Height: Generally ranging between 1800mm to 2400mm.
Width: Approximately 2100mm.
Mesh Size: The popular sizes include 60×150mm and 75×75mm.
Wire Diameter: Usually between 3mm-5mm.

Fencing Panel Materials
Galvanized Steel Wire: This wire offers high tensile strength and anti-corrosion properties, ensuring the durability of the fence panels. Powder coating available.
Galvanized Steel Tube: Serving as the frame, the steel tube provides additional sturdiness. Powder coating available.
Feet: Concrete feet or plastic feet are prevalent, offering stability and ease of setup.

Structures
Panel Frame: The frame supplies primary mechanical support for the fence system, typically constructed of quality round tubes.
Infill Mesh: Made from quality steel wire, provides the primary barrier panels.
Bracing: Diagonal supports to enhance stability.
Clamps and Couplers: Fittings used to join multiple panels securely.

Use
Temporary fence panels have versatile applications:
Construction Sites: To ensure safety and security.
Events: For crowd control and demarcation.
Public Areas: Temporary barricading during renovations or repairs.
Residential: For short-term privacy or protection needs.

Packing
Temporary fence panels are typically bulk stacked on pallets, wrapped with waterproof plastic. Clips and feet are packed in woven bags.

Easy and Quick Installation
Installing temporary fence panels is easy and quick:
Site Preparation: Ensure the ground is level.
Place the Feet: Position them at intervals according to panel width.
Install Panels: Attach panels to the feet and ensure they're vertically aligned.
Secure with Clamps: Use clamps to hold adjacent panels together.
Install Braces (if needed): This provides extra stability in windy conditions.

Quality / Standard: Australian Standard AS 4687-2007 & Australian Standard A.S.1926.1

Temporary Fence Panels exported to Australia and New Zealand, are manufactured according to specific Australia standards.

AS 4687-2007: Australian Standard AS 4687-2007 is the Australian standard for temporary fencing and hoardings. It sets out the requirements for the design, construction, and installation of temporary fencing systems used in construction sites, public events, and other temporary applications. This standard covers various aspects, including fence materials, stability, strength, and durability, also outlines specifications for gates, connections, and warning signs.
A.S.1926.1: This standard specifically refers to swimming pool fencing. Our temporary fencing for pool safety is manufactured according to this standard to ensure the safety of children around pool areas.

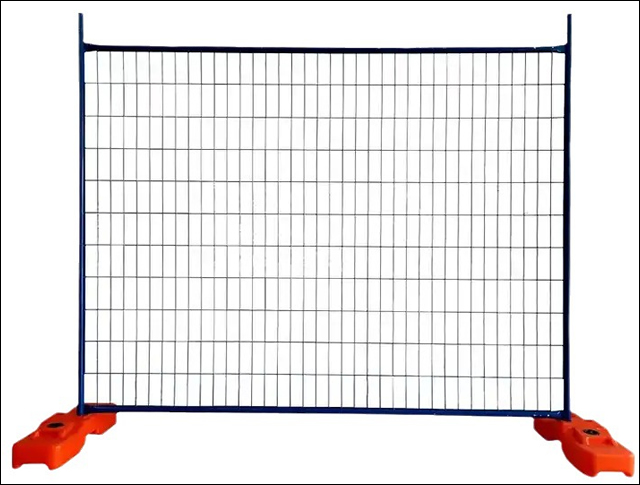

Galvanized Mesh Temporary Fence Panels for Construction Site Security

Australian Standard Temp Fence Panels are made with Australian Standard AS 4687-2007.
Common panel size 2400mm (L) x 2100mm (H), hand welded with 4.0mm mild steel wire for strength and hot dipped galvanized for lasting durability.
Fence frame consists of 32mm O.D. pipes and the wire mesh infill is commonly 4mm horizontal, 4mm vertical with 150mm x 60mm spacing. Hot dipped zinc coating of fence panels are 42 micron per square meter according to Australian Standard.

Temp Fence Panel Example -Structure and Weld Fixing

4mm Australia standard temporary fence to Sydney and New Zealand
Temporary Fence 2.1 x 2.4 long, galvanized with lockable connections between panels and with free stand feet.

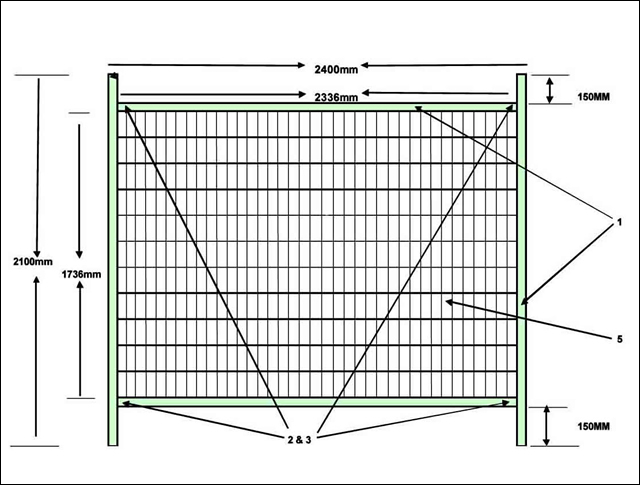

Drawing example to illustrate Frame, Infill Mesh, Pipe ends and welding connection:

1) FRAME - Pipe 32mm od. 2.0mm wall thickness. Hot Dip Galvanized Pipe.
2) All Welding Points to be sprayed with cold gal spray.
3) Pipe ends to be flattened.
4) Galvanizing for all pipe - Minimum 42 microns -300 grams per square metre.
5) INFILL - Welded Mesh - 4mm wire, Spacings- 150mmX 60mm. All Hot Dipped Galvanised.
6) Galvanizing for all welded mesh - Minimum 28 microns - 200 grams per square metre.
7) Every horizontal wire to be welded to uprightposts.
8) Every 4th vertical wire to be welded to top and bottom posts.

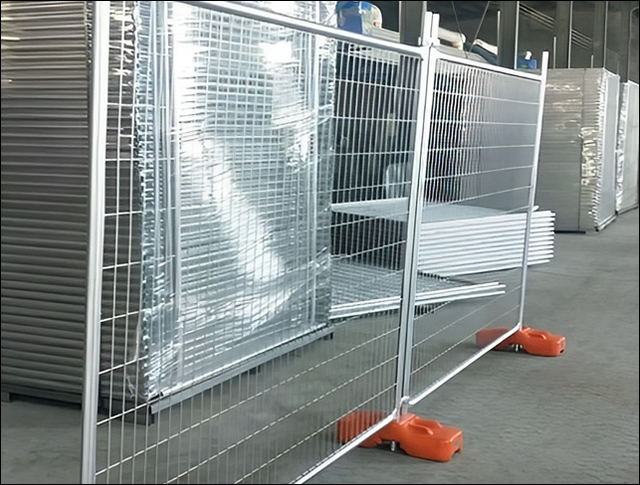

Hot dipped galvanized wire temporary fence panel

We supply Temporary Fence Panels to Australia and New Zealand, with quality meeting the regional standards, ensuring the wire fence quality and safety.

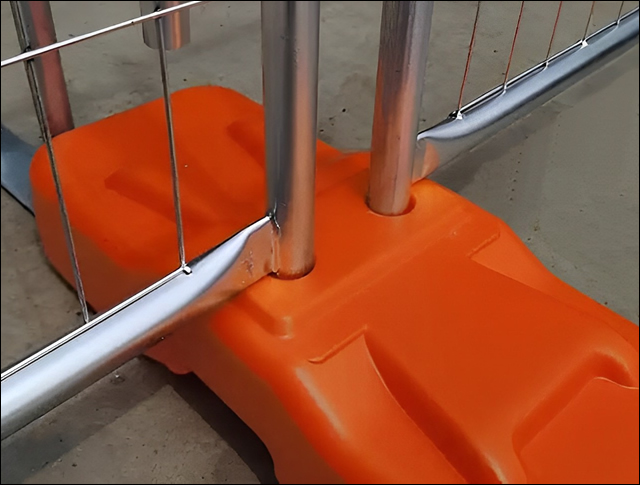

Fence Fittings:
A variety of plastic feet and clamps are supplied for different fencing panels support needs.
The fence clamps are hot-dipped galvanized to the Australian Standard AS 4687-2007, making them suitable for commercial construction sites and crowd control.

Popular colors for plastic feet are red, orange, etc.

Our customized products:

Powder coated galvanized steel welded wire temporary fence panel
2x4 powder coated galvanized steel welded wire temporary fence panel
Panels in 6x10, 6x6
Finish: Color coated galvanized corrosion resistant
Color: Yellow

Temporary fence panels
Wire diameter: 4 mm
Mesh: 150x60
Panel size: 2400x2100 panel
Frame: 32mm frame
Finish: Hot dip galvanised with a clip and yellow concrete block

Temporary Pool Fence
Temp Pool Fence Panel for swimming pool safety
Manufactured complying with Australian Standard A.S.1926.1.
Ideal for use during swimming pool construction and renovation.

Temporary Fence Panels with required Accessories for Temp Control Security Fencing System

In 1 40 foot HQ Container
Delivery: Melbourne Australia
Fence Panels:

Fence Panel Size: 2100mm Height x 2400mm Length +152mm Upper Attachment Post (2 sides)+152.. Lower Attachment Post (2 sides)
Pipe Size: 2.0mm wall thickness 32mm O.D.(300gram per 2m Hot Dipped Galvanised)
Welded Mesh Size: Wire = 6.0mm x Mesh 50mm x 50mm (Hot Dipped Galvanised before Welding)
Joining Mesh and Panels:
(a)Galvanised Riveted Clips
(b)Mig Welded or Spot Welded

Fence Panels:
Fence Panel Size: 2100mm Height x 2400mm Length +152mm Upper Attachment Post (2 sides)+152.. Lower Attachment Post (2 sides)
Pipe Size: 2.5mm wall thickness 42mm O.D.(400gram per 2m Hot Dipped Galvanised)
Welded Mesh Size: Wire = 6.0mm x Mesh 50mm x 50mm(Hot Dipped Galvanised before Welding)
Method for attachment of Welded Mesh to the Fence Panel:
(a)Galvanised Riveted Clips
(b)Mig Welded or Spot Welded

Type (3) Fence Panels:
Fence Panel Size: 2100mm Height x 2400mm Length+152mm Upper Attachment Post (2 sides)+152.. Lower Attachment Post (2 sides)
Pipe Size: 3.0mm wall thickness 47mm O.D.(440gram per 2m Hot Dipped Galvanised)
Welded Mesh Size: Wire = 6.0mm x Mesh 50mm x 50mm (Hot Dipped Galvanised before Welding)
Method for attachment of Welded Mesh to the Fence Panel:
(a)... Galvanised Riveted Clips
(b)... Mig Welded or Spot Welded

Temporary Fence Post Accessories:
Temporary Fence Panel Feet
Temporary Fence Panel to Panel Connecting Brackets
