Galvanized iron wire, soft annealed, electro galvanized and hot
dipped galvanised, pvc or epoxy coated into colors. Made of high carbon, medium and low carbon steel.



Zinc Galvanized Iron Wire - Hot Dipped Galvanized and Electro Plated Galvanized

Everbright manufactures and exports Galvanized Iron Wire to many countries including UAE, Qatar and Oman, Vietnam, Yemen, India, Ethiopian, etc. Our galvanised iron wire is processed from quality carbon steel wire materials meeting ASTM A641 and other international standards set for Zinc–Coated (Galvanized) Carbon Steel Wire.

Galvanized Iron Wire Materials: low carbon steel, medium carbon steel or high carbon steel.
Finishes of Galvanized Wire can be zinc coating (hot dipped galvanized, electro galvanized), PVC coated, annealed, tempered oil painted.
Wire Diameter Ranges: From BWG 8# to 34#.
Applications: Galvanized iron wire is mainly used for manufacture of wire mesh, spring wires, rope wires, knitting wires, scrubbing wires, cable wire, braided hose wire, fence wire, nail wires, tie wire, stitching wire, etc.
Standard packing: Usually packed in coils of 0.5kg to 800kg packed with plastic foil or Hessian/PVC cloth.

Galvanized iron wire is divided into hot-dip galvanized wire and cold plated galvanized wire ( electro-galvanized wire ).

Differences Between Hot Dipped Galv. and Electro Galvanized Iron Wire

Hot-dip galvanized iron wire is produced by steel wire dipping into a heated and melted zinc solution to forms an infiltration layer with the base wire material.
Surface: Hot dipped galvanized iron wire has a dark, thick yet uneven zinc coating layer, while electro galv. iron wire has a uniform surface which is bright, shine, silver.
Cost: Hot dipped gal. iron wire consumes more zinc than electro galv. one.
Property: Hot-dip galvanized iron wire has a thicker zinc plating layer and strong corrosion resistance and good flexibility, while electro galvanized iron wire is less corrosion resistant, easily get rusty exposed to long time outdoor water, weather environments.

Galvanized Iron Wires We Deliver

#36 AWG Galvanized iron wire, Wire gauge 23#, 24#
21-gauge galvanized iron wires, fine quality, for tying reinforced iron bar in buildings
17.5 / 18 Gauge Galvanized Iron Wire for use in construction, in rolls of 25 Kg

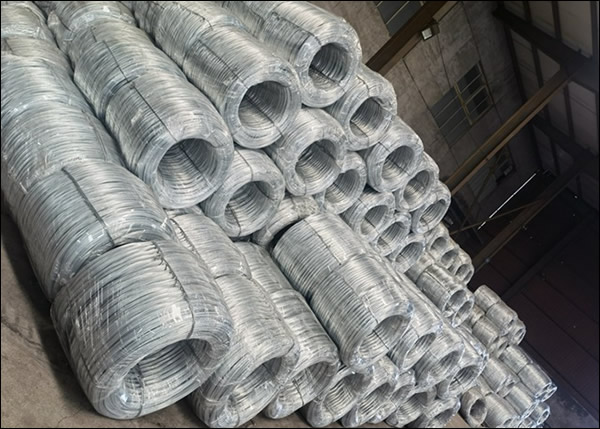

Hot Dipped Galvanized Steel Wire
Wire diameter: 2.00mm to 4.00mm
Material: High carbon steel
Zinc coating galvanized:
class B and class C according to the ASTM A-475

Galvanized iron wire Bwg 18
Wire, Hot-Dipped Galvanized Iron, 18 Gauge
Material: High carbon steel rod
Standard ASTM A641
Packing 25kg coil

Hot dip galvanized iron wire for armoured electrical cables
Diameter 0,60 mm
Diameter 0,80 mm
Standard Din 250

Hot dipped Galvanized Iron wire, 20 Gauge
Zinc - 30 GSM
Diameter in mm: 0.91
Gauge: 20 SWG
Tensile strength: 350 - 500 MPa
Packing: 2.5Kg/roll, 4Rolls per bundle

Hot Dipped Galvanized Iron Wire 0.90mm to 1.4mm
Wire Diameter / Unit Weight

MM KG/KM
0.90 4.993
1.0 6.23
1.1 7.538
1.2 8.971
1.4 12.21

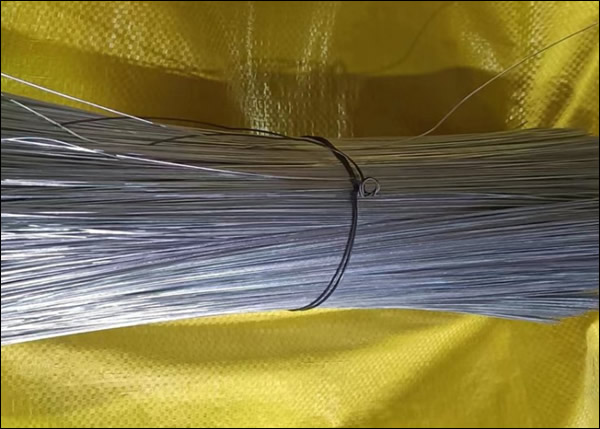

Electro galvanized Iron wire for binding
Size 0.8mm, 0.9mm and 1.0mm
Electro GI Binding Wires BWG20
Galvanized Iron Binding Wire - Building Materials, Material Specifications - Low Carbon Steel
Size- BWG20 ( 0.89mm)
Roll Weight- 10kg/ Roll
Packing - PLASTIC FILM IN INSIDE,OUTER PACKING IN HESSIAN CLOTH

Galvanized Iron Wire for Barbed Wires Manufacturers
2mm galvanized iron wire, material for barbed wires Galvanized Iron Wire for Barbed Wires
Galvanized Iron Wire BWG 21 4KG/Coil
Galvanized iron wire size BWG22 (7 kg/coil)
Packing: Plastic inside and hessian outside at 40ft container

10 SWG Galvanised Iron Wire Conforming to BS: 1052, in coilsElectro galvanized small coil wire
Galvanized iron wire, diameter 4mm, 5mm, other sizes, Weight 25kg, electro or hot galvanized.

Galvanized Iron wire, super soft quality
Tensile strength: 30-55 kgs/Sq.MM
Size: BWG-20
Packing 10KG/coil.

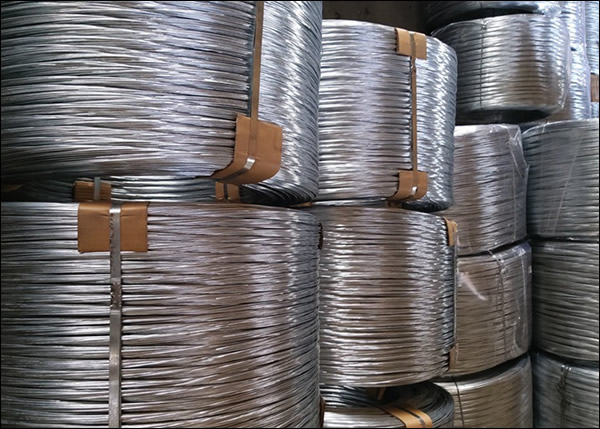

Zinc Coated Galvanized Iron Wire
4.2mm/4.9mm wires
Zinc coated galvanised iron wire
Hot dipped zinc coated iron galvanized wire of 25 & 27 gauge

Epoxy Coated Galvanized iron wire 2.7mm/3.7mm (ID/OD)

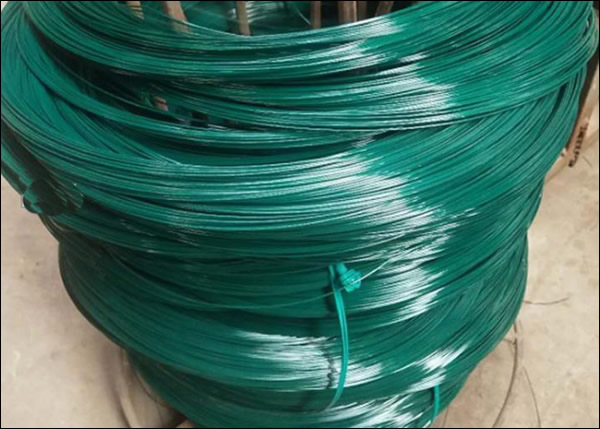

Galvanized iron wire green painted color RAL 6005
Iron wire, green painted in RAL 6005 (NOT PVC COATED), core wire: galvanized, diameter 1,50 mm, 1,65 mm
Tensile strength 740-890 N/mm², in 25 kg coils

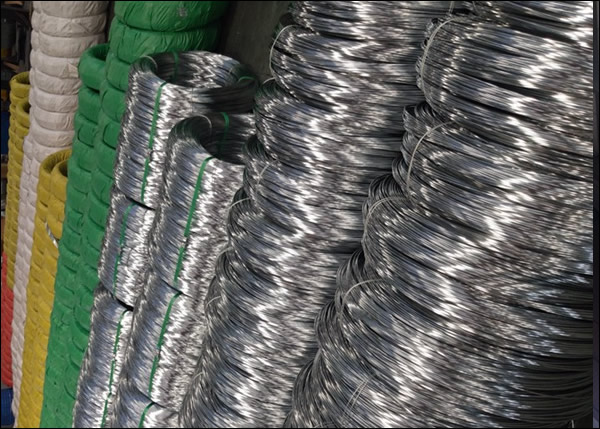

Electro Galvanized Iron Wire
Eelectro-galvanized iron wire 0.92mm, 1.20, 1.2mm
Detail specifications ( Tensile, Elongation, Chemical Composition, Electro Plating, Packing)
Detail specifications

Hot Dipped & Electro Plated Galvanized Iron Wire
Steel galvanized Wire, Hot Dipped or Electro Plated.
Dia 2.9mm, 2.3mm, 2.0mm and 1.6mm.
Weight and percentage of Zinc used for coating in Hot Dipped process varies according to customers requirements
Various zinc quantity for Electro Plating per square meter
Packing details: Can be wrapped with PE against sea water corrosion
Coils in Wooden Pallets, then in fcl.
