Galvanized iron wire, soft annealed, electro galvanized and hot
dipped galvanised, pvc or epoxy coated into colors. Made of high carbon, medium and low carbon steel.



Baling Wire for Auto Baling Machine, Baling Of Waste Cardboard, Tire, Hay, Cotton, Scraps

Everbright Industial supplies baling wire, in carbon steel, black oiled, annealed and galvanized, according to the customer's requirements.

Packed forms are box wire, coil wire and rolls available in various weight unit to meet balers needs.

Please provide the specific application and we will provide matching baling wire for you listed as below. If you have specific technical specification requirements, please include all the information when you send inquiry.

Our tech information including:
*Wire gauges available
*Diameter ranges
*Type of Steel used: 1018, 1008 or other
*Tensile Strengths
*Break Strength
*Elongation
*Small Coil / Orbit Coil / Box / Rolls / Pallets, Weights/Packaging options
*Coil dimensions: I.D./O.D./Width

Packaging Types

PACKING: a) Special pallet wire: Bundles of wire, then put in pallet of certain design. Easy to store in stackable pallet, and easy for baling for the pallet allows for dispensing one bundle at a time

PACKING:b) Rolls Wire: Packed in Spooless Cores of approx 40 - 50 kg
with Core dimensions details being: OD – 336mm,ID – 208mm,Height – 152mm
And 27 such Cartons suitably strapped onto a wooden Pallet

PACKING: c) Big Coil Wire: Wires packed on continuous length Orbit Coils each with a capacity of approx 900 - 1,000 kg securely strapped with six (6) wide tightly held straps and then wrapped with plastic and placed on a Carrier/Former/Stem and with such Orbit Coil dimensions details being: OD – 900mm,ID – 500mm,Height – 152mm

PACKING: d) Box wire: Each coil is individually packaged in a strong corrugated box. Wire feeds from outside of the coil. 100 lb. coils packaged 36 boxes to a pallet. 50 lb. coils packaged 45 boxes to a pallet. Pallets can be stacked three high to save space.

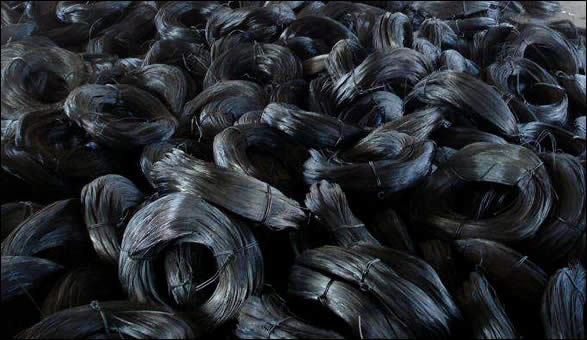

Black Annealed Bale Ties

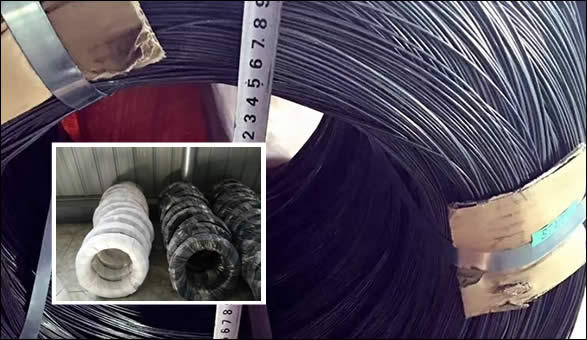

Dark Annealed Steel Baling Wire Coils

Wire size ranges: 11, 12, 13 and 14 gauge
Wire lengths : 10 to 21 ft.
In bundles contain 125 or 250 wires.
Popular specifications:
Baling wire, in 450m length, 2.64mm diameter, in 20kg, fully annealed black
Dark annealed steel bailing wire Ø1.625mm
12 gauge 15’ baling wire to bale UBC

Packing options:
In small coils 20kg per coil;
In bundles then in stackable pallet;
In big coils: Coil wire is packaged on stackable steel carriers.
Wire packed in coils, is known as Coil Wire.

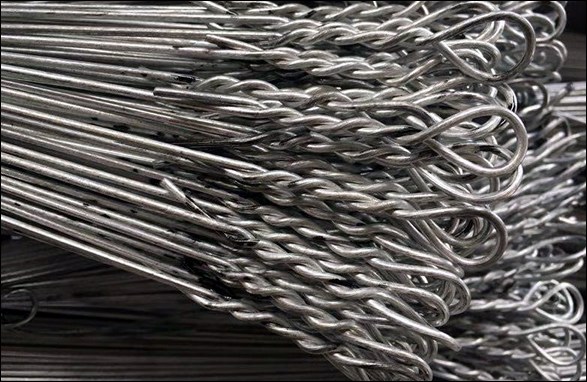

Galvanised Bale Ties

Single Loop Twisted Bale Ties

GI wire size ranges: 11, 12, 13, 14 gauge and 14.5 gauge
Wire lengths : 10 to 22 ft.
Bundles contain 62, 125 or 250 wires.
Popular specifications:
Box Wire 100 lb. coils packaged 36 boxes to a pallet.

Gauge Diameter Coil Break Range Tensile Strength
10 Ga 0.135 in 930 to 1073 65,000 - 75,000 psi
11 Ga 0.121 in 747 to 862 65,000 - 75,000 psi
12 Ga 0.105 in 563 to 649 65,000 - 75,000 psi
14 Ga 0.080 in 327 to 377 65,000 - 75,000 psi
10 Ga 0.135 in 930 to 1073 65,000 - 75,000 psi
11 Ga 0.121 in 747 to 862 65,000 - 75,000 psi
12 Ga 0.105 in 563 to 649 65,000 - 75,000 psi

Packing options:
In coils;
In orbit coils.

Baling Wire For The Baling Of Waste Cardboard

High tensile mild steel bale ties for waste cardboard bales

General Material:
Low Carbon Material
Quality - C 1.0010 to DIN 17007
Analysis: Carbon – C - < 0.100%.
Phosphorus – P - < 0.095% Max.
Sulphur - S - < 0.080% Max.
Soft Annealed.
Tensile Strength:350 - 450 N/mm2.
Elongation: - 12% at 254mm.
Diameter Tolerance:+ /- 0.04mm.
Quantity Tolerance:+ /- 0.5%.
QUANTITY TOLERANCE PER SPOOL: + 3%/ - Nil%.
FINISH: Black and slightly oiled.
Specification list in PDF

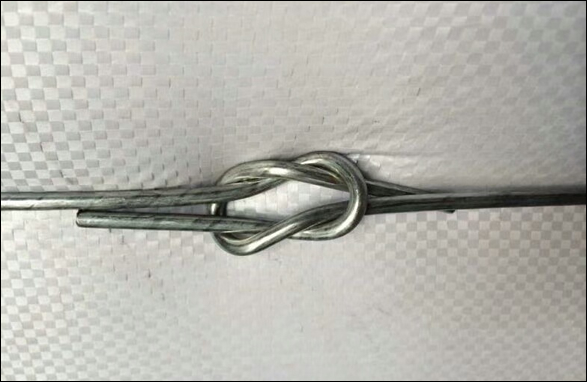

Hay Baling Wire

Box wire for hay baling

Hay bale tie wire is a kind of box wire used to holding hay of wheat, sorghum, corn alfalfa, etc.
The wire is oil coated, packed in rolls or coils then plastic strapped, then in box with 100lbs weight per box. Hence, it is also called Box baling wire.

Box wire features:
Easy uncoiling
Easy to install and handle on any bailing equipment.
Straps keep roll on its original shape during usage time.
Minimum wire waste.
No stuck in the baling equipment
Long lasting wire lubrication.

Popular specifications:
14 1/2 gauge wire, oil lubricated.
GI baling wire, wire, RD. 3.1mmD, 3.2mmD ALLOY, 3.3mmD.

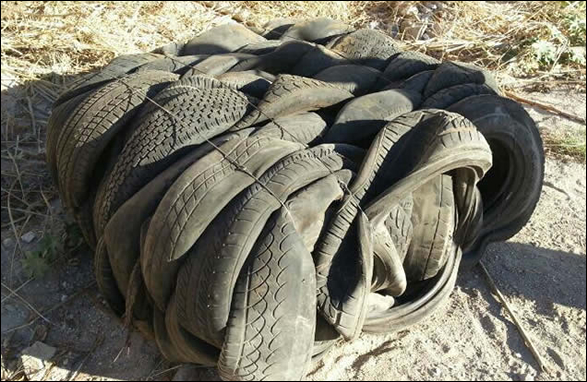

Tire Baling Tie Wire

Galvanized Iron Wire for Bundling Tires

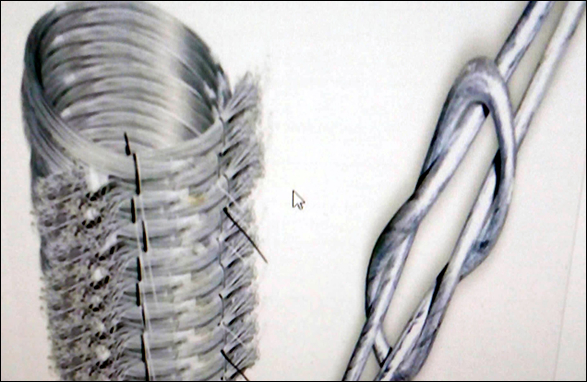

Double loop bale ties are baling wire for tying compressed tires in bales. The wire is designed with the ends turned as a hook.

Specifications:
Capacity
120tons
Baling Chamber Size (L*W*H)
2100*1200*2100mm
Bale Size(L*W*H,H is adjustable)
2100*1200*(700-1400)mm
Bale Size After Expansion (L*W*H)
2200*1300*1400mm
Bale Weight
1.9ton
Power
22kw 380v 60Hz, 3Ph
Machine Weight
12000kgs
Machine Overall Dimension
4231*1510*4300mm

Cotton Bale Ties

Quick Knotted Loop Wire Tie for Cotton Balers

Cotton baling wires come in two forms: single looped, double loop quick knot design. Popular materials are black annealed galvanized.

Baling Wire (Annealed type) for Auto Baling Machine
Wire:2.7 to 3 mm,
Dia roll ID:180mm,
Roll OD: 250mm,
Roll height 150mm,
Roll weight: 35 Kg/ Roll for Auto Baling Machine

Double Looped Cotton Baling Wire:
Specifications
Gauges: 14 gauge to 9 gauge
Wire length: 6 to 22 ft
