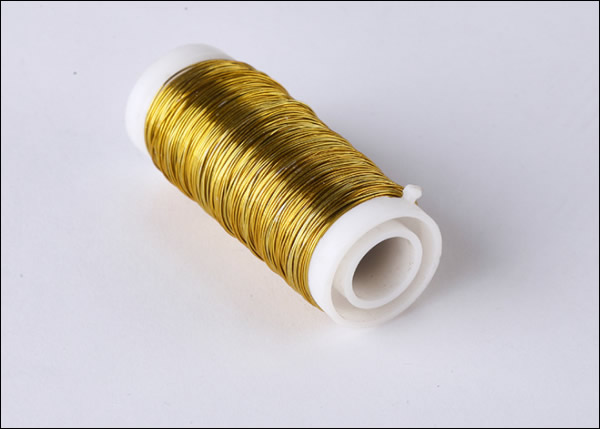

Copper Coated Steel Wire

Copper coated wire is also known as Copper Cladded Wire or Copper Plated Wire. Mainly used for making brushes, stitching wire, tie wire, bale ties, binding.
Packing: Spooled copper coated wire or coiled copper coated wire are available as per customer's requirements.

Our copper coated wire is exported to Malaysia, Pakistan, Singapore and other countries.
Wire types we deliver:
0.37 mm Copper coated steel wire
6.0mm copper coated ms (mild steel) wire for manufacturing wooden box nails
2mm thick Copper coated iron wire
Copper-wire chicken wire netting
Zinc coated copper tie wire
Copper tie wie diameter 1mm



Copper Coated Stitching Wire

Stitching Wire - Copper Coated
Size: 2mm x 0.75mm
Packing: 20/25kg bobin & 2.5kg
In 20 feet container



High Carbon Steel Spring Wire, Copper Coated
Quality: EN10270-1-SH / 82B
Wire diameter 3,20 Copper Coated
Packing: In 2.500 kg coils



Cotton bale wire galvanized and/or copper coated
Size 3.50 mm x 96" length.
Packing in bundles of 100 pieces
Type: Bale tie wire looped at both ends



Pvc coated copper 0.9mm binding wire

PVC sheath / coated copper binding wire 0.9mm
Binding wire rolls
Conductor configuration: 1 copper bind/ 0.85mm
Sheath thickness : 0.32mm
Sheath outer diameter : 1.5mm



Copper Coated Steel Wire
Standard: Acc. to BS-4087
Uses: Drop Wires for the Telephone Industries
Technical details:

Copper Coated Steel Wire BS-4087, ASTM-BS227
Diameter 1.0mm +/- 0.01mm
Breaking Load 98 Kgs
Conductivity 30% - 31%
DC Resistance 68 Ohms - 70 Ohms
Elongation 2.1%
NO joints in the entire lot of 25MT or 1 FCL.
Packing Net CCSW 300Kgs in Steel reels, PVC Wrapped and Then into Steel Drum.



Copper coated wire, annealed

Annealed copper cladded wire, material to be annealed after copper coating, specifications:
Diameter: 1,07mm +0,01 / -0,02mm
Tensile strength: 300 – 400 N/mm2
Copper coating: 25 g/m2
Raw material: C4D (or U53042) %C < 0,06 / %Si < 0,30 / %Mn: 0,30 – 0,60 / %P < 0,035 / %S < 0,035 / %Al < 0,01 / %Cr < 0,2 / %Cu < 0,3 / %Mo < 0,05 / %Ni < 0,25

Copper Plated Wier in Orbit Coils
Packed in 800Kg orbit coils
ID: 400mm
OD: 800mm
Height: 1000mm

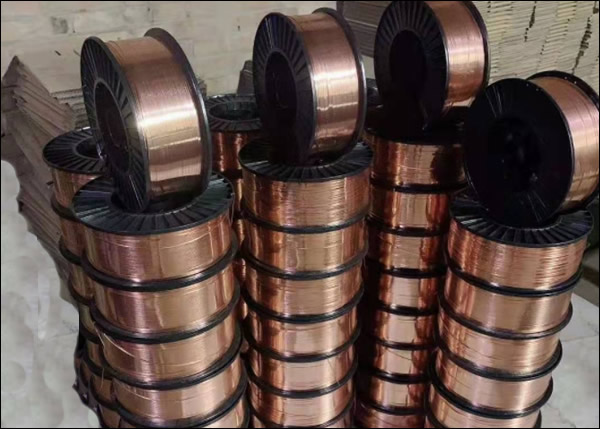

Copper Coated Mild Steel Wire, in Spools

Copper coated spool wire
Detail:
Wire Diameter: 1mm
Packing: Spool DN 130mm
Wire Diameter: 1.8mm
Packing: Spool DN 130mm



Double Wire Loop Ties, Copper Coated Annealed

Double wire loop ties
Material: bright annealed wire
Copper coated wire >6-7g/m2
Packing: in bundles of 1000pcs then in wood euro pallets with top wood board well fastened with strapping and protected with sea packing.

Sizes:
1,0x120mm
1,0x160mm
1,0x200mm



GALVANIZED STEEL WIRE Fastening thread guard grounding copper coated steel

2.76 gauge (12BWG)
45.69 kg/mm2 resistance
40HS gauge AWG 3Nº6
Wire made of low carbon steel (SAE 1006) according to standard ASTM A641, Class 3, Type A.
Minimum galvanized layer must be 240 gr / m2.



Coated Glass Yarns Coated with Copper

Metal coating service:
Glass yarn - 30 - 35 microns thickness
Carbon yarn - 30 - 35 microns thickness
Copper and aluminium coatings separately

Coating thickness: 1-5 microns.
Overall thickness of yarn after coating: Max. 50 microns.

Totally 4 end materials,
1. Glass yarn coated with copper
2. Glass yarn coated with Aluminium
3. Carbon Yarn coated with copper
Carbon Yarn Coated with Aluminium
