Galvanized iron wire, as our primary products, falls into two major kinds according to the finishes. One is electro galvanized wire while the other is hot dipped zinc coated galvanized wire.


Home >> products


Barbed Wire

We offer barbed wire with three patterns: straight twisted barbed, reverse twisted barbed and double twisted barbed.

Barbed Wire falls into five varieties according to the finishes: electric galvanized barbed iron wire, hot-dip zinc-plating barbed iron wire, PVC coated barbed iron wire, PE barbed iron wire, stainless steel barbed wire.
Besides traditional barbed wire products, We have also developed a new kind of barbed wire, razor barbed wire, which offers sharper blade and better security for protecting. Barbed Wire and Razor Barbed Wire are often used together with different fences to reinforce security for residences, buildings and places.

Galvanized Barbed Iron Wire
Galvanized Barbed Iron Wire is supplied in IOWA type, with 2 strands, 4 points. Barbs' distance 3-6 inches ( Tolerance +- 1/2" ).

Galvanized Barbed Iron Wire offered by us is suitable for industry, agriculture, animal husbandry, dwelling house, plantation or fencing.

Packing: in coils.


Gauge of
Strand and Barb in B.W.G.

Approximate Length per Kilo in Meter

Barbs Spacing 3"

Barbs Spacing 4"

Barbs Spacing 5"

Barbs Spacing 6"

12x12

6.0617

6.7590

7.2700

7.6376

12x14

7.3335

7.9051

8.3015

8.5741

12-1/2x12-1/2

6.9223

7.7190

8.3022

8.7221

12-1/2x14

8.1096

8.814

9.2242

9.5620

13x13

7.9808

8.899

9.5721

10.0553

13x14

8.8448

9.6899

10.2923

10.7146

13-1/2x14

9.6079

10.6134

11.4705

11.8553

14x14

10.4569

11.6590

12.5423

13.1752

14-1/2x14-1/2

11.9875

13.3671

14.3781

15.1034

15x15

13.8927

15.4942

16.6666

17.5070

15-1/2x15-1/2

15.3491

17.1144

18.4060

19.3386

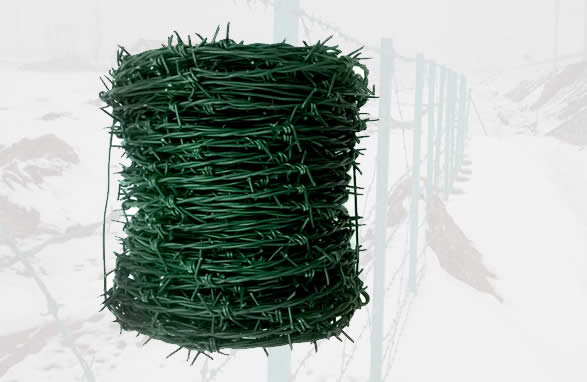

PVC Coated Barbed Iron Wire:

Core of PVC Coated Barbed Iron Wire can be galvanized iron wire or black annealed iron wire.
A variety of colors like green, blue, yellow, orange, gray, is available with PVC Coated Barbed Iron Wire produced by us.
Tensile strength of Standard PVC Coated Barbed Iron Wire is 30-45 kgs./sq.mm.

Packing: In coil of 25 kilos or 50 kilos net, lined with P.V.C strips, then wrapped with P.V.C or hessian cloth.

Sizes of PVC Coated Barbed Iron Wire

Core Wire Diameter

Outside Diameter

1.0mm-3.5mm
BWG.11-20
SWG. 11-20

1.4mm-4.0mm
BWG. 8-17
SWG. 8-17

Note: Thickness of P.V.C. coating layer: 0.4mm-0.6mm
