Galvanized iron wire, soft annealed, electro galvanized and hot
dipped galvanised, pvc or epoxy coated into colors. Made of high carbon, medium and low carbon steel.

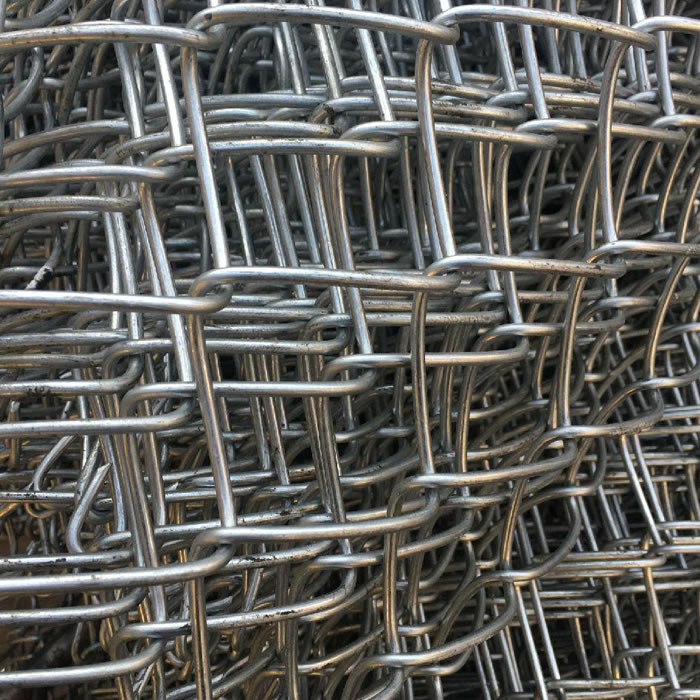

Galvanized Steel Wire Chainlink Mesh Fencing

Everbright is an exporter and supplier of quality Chain Link Wire Netting for Dubai, UAE, Australia and other countries.

We have:
Complete quality control system;
Experienced technical staff;
Selected steel wire materials applied.

Weaving:
Cyclone chain linking weaving.

Fabric Top Style:
Twist, knuckle barbed, twist and knuckle.

Main Types:
Electro galvanized chain link fence ( Rolls):
2.7mm×5×5cm×1×15m
2.7mm×5×5cm×1.8×15m
3mm×5×5cm×1×15m
3mmx5x5cmx1.8x15m

Wire applied:
2.7mm Galvanized
3mm Galvanized.

Finishes:
Galvanized;
Galvanized steel pvc coated or vinyl coated.

Anti Climbing Galv. Chainlink Mesh Fence with Galvanized Barbed Wire

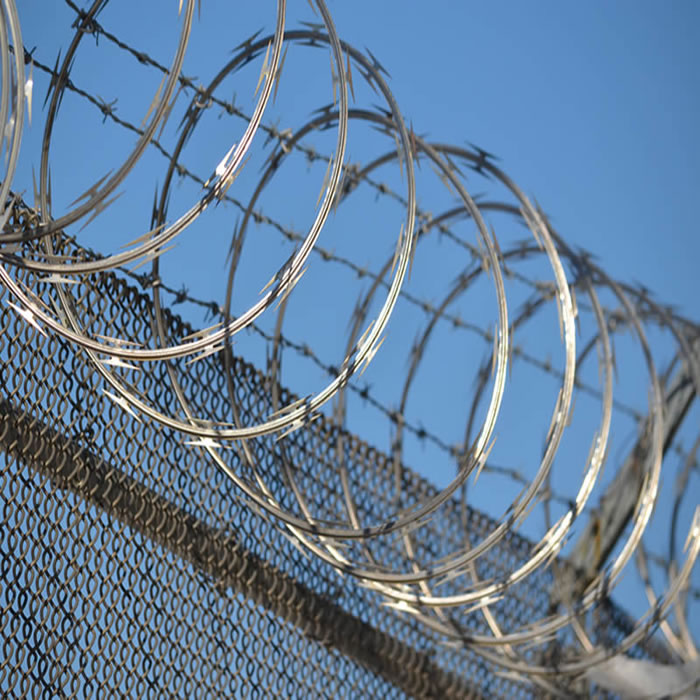

Chain Link Fence with Anti Climbing Razor Barbed Wire
Hot Dipped Galvanized Steel Wire Mesh Rolls for Fencing Uses

Chainlink Mesh Rolls, Opening: 50mmx50mm
Wire diameter: 2.7mm (before pvc coating), 3.00mm ( after pvc coating), 10 Gauge
Finish: Hot dip galvanized
Length of Roll: 25m
Width of the roll: 1.50m, 10m per roll
Fence posts for above barbed wire.
Fence height: 4ft.

Wire material:
The fabric is woven with 10 ga galvanised steel wire.
Wire rolls:
3mm( with PVC coating)
2,7mm( Before PVC)

Barbed Wire Concertina Coils: CBT-65 Coils
Razor Barbed Wire Coils, 700mm Coil Diameter, CBT-65 Style

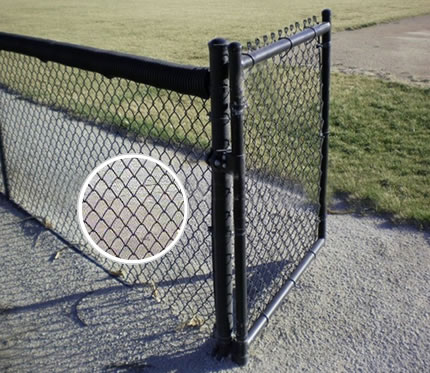

Chain link fence with gates, galvanised and PVC coated

Swimming pool safety fence, black vinyl coated galv. wire diameter: 3.2 mm after coating (2.2 - 2.5 mm before vinyl or PVC coating).
Hole: 2 x 2 inch.
Fence hight: 2 m
Roll size: 2 x 20 M

Fence Posts:
Length: 2.4 M
Diameter: 2 inch
Thickness : 2.2 - 2.5 mm
3 holes (4 mm), with distance: 10, 100 & 190 cm from the top end.

Fencing Wire: Diameter 4mm

Black PVC Coated Chain Link Fence With Gate For Swimming Pool

Chain Link Mesh Specifications:

Description Opening ( mm ) Wire diameter ( mm ) Width of the roll ( m ) Length of the roll ( m )

Chain Link Wire Netting

( Galvanized )

60 mm 2 mm 2 m 15 m
70 mm 2 mm 2 m 15 m
60 mm 2.6 mm 1.5 m 15 m
70 mm 2.6 mm 1.5 m 15 m
60 mm 2.6 mm 2 m 15 m
70 mm 2.6 mm 2 m 15 m

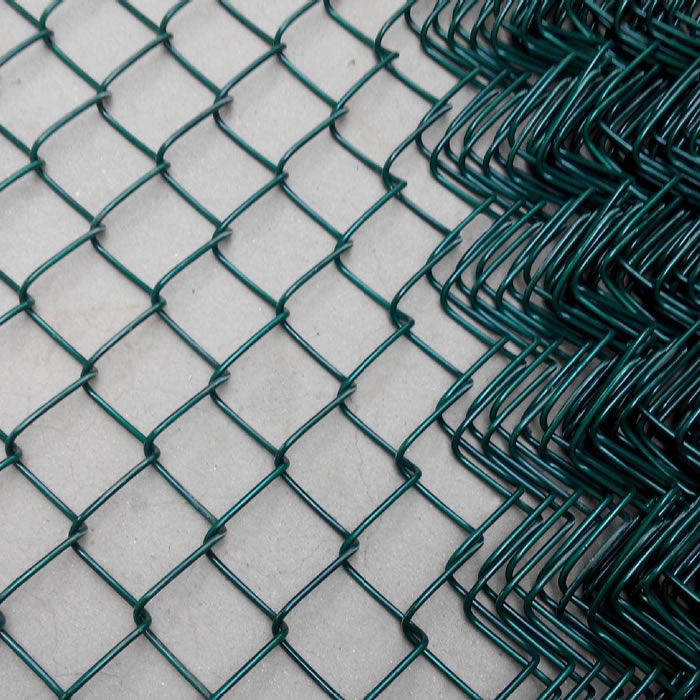

Galvanized and Green PVC Coated Chain Link Fence System

Power plant and substation fencing system

Galv. + powder coated wire mesh fencing for power plant and substation security fencing works
Including:
GI chain link mesh, pvc coated green
Fencing securing wire, galvanized and pvc coated
Fence topping: Barbed wire, galvanized and pvc coated; razor concertina wire
Posts, galvanized and pvc coated
Posts accessories, galvanized and pvc coated finish

Coating Colors
Fencing fabric: Dark green. White, beige and other colors upon request.
Fence posts: Dark green. White, beige and other colors upon request.



Chain Link Fence Fabric Specifications

Fence Fabric
Galvanized+PVC Coated Chain Link Fence fabric
Mesh wire Dia: 4.60/6.4mm
Mesh Size 50 x 50mm
Height of fence fabric: 3.00 Mtrs.
Fence top & Bottom Selvedge: Knuckled.
30mm Buried in to the concrete.
Color: Dark Green (RAL 6005).

Line Wire
5 Rows made out of 4.60/6.4mm wire diameter, Galvanized + PVC Coated line wire to secure the fence fabric.

Stirrup Wire
Made out of 3.85/4.75mm dia. Galvanized + PVC Coated Stirrup wire to secure line wire & Barbed Wire to all Intermediate posts.

Tie Wire
Made out of 1.8/2.6mm dia. Galvanized + PVC Coated tie wire to secure fence fabrec to line wire at every 300 mm centers. It also used to secure concertina razor tape to barbed wire.

Barbed Wire
6 Rows on the Y crank.
Line Wire: 2.50mm Stainless Steel (SS 304)
Barb wire: 2.0mm Stainless Steel (SS 304)
Specification: 2 Ply point barbs at every 100mm Centers.

Concertina Barbed Tape
1. Row of Double Coil Stainless Steel Concertina Barbed Tape on the fence, along the Y crank.
Long Blade Barbed Tape (LBBT)
Outer Coil Dia. : 750mm(Before Expansion)
Inner Coil Dia.: 600mm(Before Expansion)
Barbed rape Thickness: 0.5mm Stainless Steel AISI 430
Core Wire: High Tensile Stainless Steel Wire Dia
2.5mm(AISI304)
Tape Width : 21mm
Barb Length: 65mm
Barb Spacing : 35mm
No. of Turns: 33 per Roll
Wire Rope: 1.2mm Dia. 7 strand stainless steel rope
used to connect two coils.

All Wires Except Bathed wire &, Concertina Razor Tape are Galvanized + PVC Coated to Dark Green Color (RAL 6005). Barbed Wire & Razor Tape - Stainless Steel



Posts Specification

Intermediate Posts
At every 3.0 meters.
Post made out of 80*80*3mm Thk. SHS.
Total height -3.0 Mtr above the ground level +0.70 Mtr Y Crank extension. +0.70 Mtr buried in to the ground. +150 * 150 * 3mm thk. Anchor plate welded bottom of post.

Straining posts
At every 45 meters.
Post made out of 80*80*3mm Thk. SHS.
Total height -3.0 Mtr above the ground level +0.70 Mtr Y Crank extension. +0.70 Mtr buried in to the ground. +150 * 150 * 3mm thk. Anchor plate welded bottom of post. with additional: a) 2 Nos of Diagonal supports - made out of 80 * 80 *3mm Thk. SHS

Corner Posts
Placed at corners of change in direction locations.
Construction same as abovesaid straining Post.

End Posts
Same as Strainer Posts with only one no. Diagonal Support. To be placed at Fence Starting or ending locations.

Stretcher Bar
Made out of 25 * 5mm thk. M.S. Flat bars weaved through end mesh and secured to the post after stretching the fabric at Straining/Corner/End Posts.

Dropper bar
Made out of 25 * 5mm Thk M.S. Flat - 0.70 Mtr long.
Placed center of each bay - 2 Nos per Bay

Accessories
SS Turn Buckle - 3/8", SS Eye Bolt _ 3/8", Hair Pin Staple, SS Nut Bolts.

Finish
After Fabrication All Metals are are Hot Dip Galvanized to BSEN ISO 1461 & PVC Coated to 300 microns in Dark Green Color (RAL 6005).

GALVANIZED MESH FENCE (Chain Link WOVEN TYPE) WITH CONCERTINA WIRES AND BARBED WIRES

Galvanised Steel Diamond Mesh Fence ( Chain Linked Type ) with Concertina Wires and Barbed Wires and Galvanized Steel Posts for High Security Fencing Project

Galvanized steel diamond mesh chain link fence fabric

Chain link mesh galv. steel, 50mm x 50mm, diamond opening, wire diameter 3.25 mm, fabric made of steel with ultimate tensile strength of 550 N/mm2 with galvanized coating.
Galv. mesh fabric is top and bottom selvage twisted, barbed
Fastened to the line post and tension wire with 3.5mm diameter galvanized steel wire at 40 cm intervals.
Tension wire is galvanized carbon steel wire.
All posts ( line post, corner post, brace pipes ) are hot dip galvanized.
Barbed Wires, of double strand twisted carbon steel wire, galvanized coated. Installed with 6-strand on top of galv. steel fence, including supporting arms, and all other accessories.
Concertina Wire, galvanized steel, in 500 mm coil diameter placed on top of barbed wire
Concertina Wire, galvanized steel, in 1000 mm coil diameter placed below the chain link fence, excluding concrete anchor post.
All accessories galvanized steel per ASTM A153.

Fencing design features high security fencing for perimeters and borders with knuckle fence tops, concertinas both at bottom and top of fence panels and 3 lines stranded barbed wire protection.
PDF drawing references:
Fence fabrics;
Corner posts;
Steel posts with Band Bar(73mm Diameter Post, Band Strecher Bar 25x3mm Thickness with Chamfered Ends, 10mm Diameter Rod Bar with Eye and Thread);
Barbed Wire Support Post (Post diameter: 60.6mm, Galvanized T section post 50x50x5mm, arm angle 45).

Barbed Wired Fence Suppported on angle 45 post arm

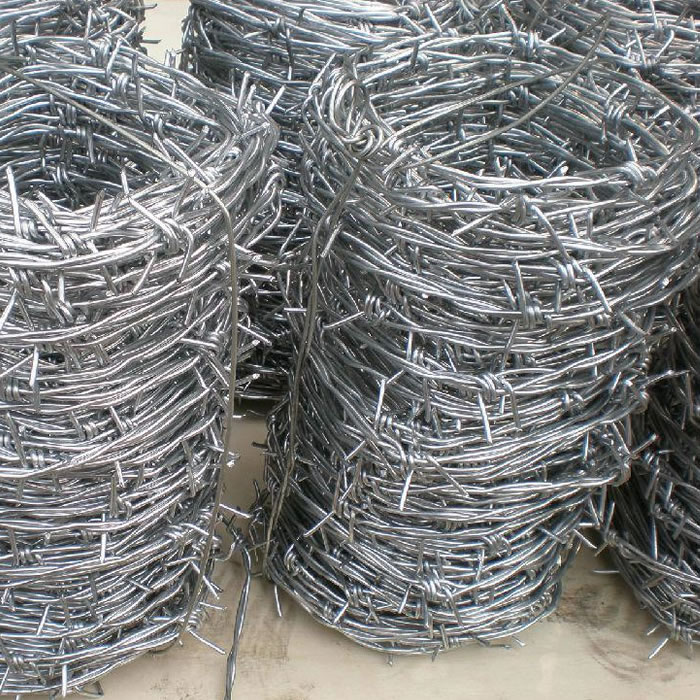

Two strands galvanized steel wire twisted barbed wire, fence tops, galvanized, wire 1.6mm, 5" distance between the spikes, resistant 400kg

Specification of Galvanized Diamond Mesh (Chain Linked Woven) , with Opening 5mm and 6mm

Opening Wire
Diameter
Roll
Width
Roll
Length
Opening Wire Diameter Roll Width Roll Length
5mm x 5mm Galv. 1.8 mm 1 m 15 m 6mm x 6mm Galv. 1.8 mm 1 m 15 m
5mm x 5mm Galv. 1.8 mm 1.5 m 15 m 6mm x 6mm Galv. 1.8 mm 1.5 m 15 m
5mm x 5mm Galv. 1.8 mm 2 m 15 m 6mm x 6mm Galv. 1.8 mm 2 m 15 m
5mm x 5mm Galv. 2.3 mm 1 m 15 m 6mm x 6mm Galv. 2.3 mm 1 m 15 m
5mm x 5mm Galv. 2.3 mm 1.5 m 15 m 6mm x 6mm Galv. 2.3 mm 1.5 m 15 m
5mm x 5mm Galv. 2.3 mm 2 m 15 m 6mm x 6mm Galv. 2.3 mm 2 m 15 m
5mm x 5mm Galv. 2.8 mm 1 m 15 m 6mm x 6mm Galv. 2.8 mm 1 m 15 m
5mm x 5mm Galv. 2.8 mm 1.5 m 15 m 6mm x 6mm Galv. 2.8 mm 1.5 m 15 m
5mm x 5mm Galv. 2.8 mm 2 m 15 m 6mm x 6mm Galv. 2.8 mm 2 m 15 m
5mm x 5mm Galv. 2.8 mm 1 m 25 m 6mm x 6mm Galv. 2.8 mm 1 m 25 m
5mm x 5mm Galv. 2.8 mm 1.5 m 25 m 6mm x 6mm Galv. 2.8 mm 1.5 m 25 m
5mm x 5mm Galv. 2.8 mm 2 m 25 m 6mm x 6mm Galv. 2.8 mm 2 m 25 m

Specification of Gal. + PVC Coated Mesh (Chain Linked Woven) , with Diamond Opening 5mm and 6mm

Opening Wire
Diameter
Roll
Width
Roll
Length
Opening Wire Diameter Roll Width Roll Length
5*5 Galvanized + PVC 1.8 mm 1 m 15 m 6*6 Galvanized + PVC 1.8 mm 1 m 15 m
5*5 Galvanized + PVC 1.8 mm 1.5 m 15 m 6*6 Galvanized + PVC 1.8 mm 1.5 m 15 m
5*5 Galvanized + PVC 1.8 mm 2 m 15 m 6*6 Galvanized + PVC 1.8 mm 2 m 15 m
5*5 Galvanized + PVC 2.3 mm 1 m 15 m 6*6 Galvanized + PVC 2.3 mm 1 m 15 m
5*5 Galvanized + PVC 2.3 mm 1.5 m 15 m 6*6 Galvanized + PVC 2.3 mm 1.5 m 15 m
5*5 Galvanized + PVC 2.3 mm 2 m 15 m 6*6 Galvanized + PVC 2.3 mm 2 m 15 m
5*5 Galvanized + PVC 2.8 mm 1 m 15 m 6*6 Galvanized + PVC 2.8 mm 1 m 15 m
5*5 Galvanized + PVC 2.8 mm 1.5 m 15 m 6*6 Galvanized + PVC 2.8 mm 1.5 m 15 m
5*5 Galvanized + PVC 2.8 mm 2 m 15 m 6*6 Galvanized + PVC 2.8 mm 2 m 15 m
5*5 Galvanized + PVC 2.8 mm 1 m 25 m 6*6 Galvanized + PVC 2.8 mm 1 m 25 m
5*5 Galvanized + PVC 2.8 mm 1.5 m 25 m 6*6 Galvanized + PVC 2.8 mm 1.5 m 25 m
5*5 Galvanized + PVC 2.8 mm 2 m 25 m 6*6 Galvanized + PVC 2.8 mm 2 m 25 m

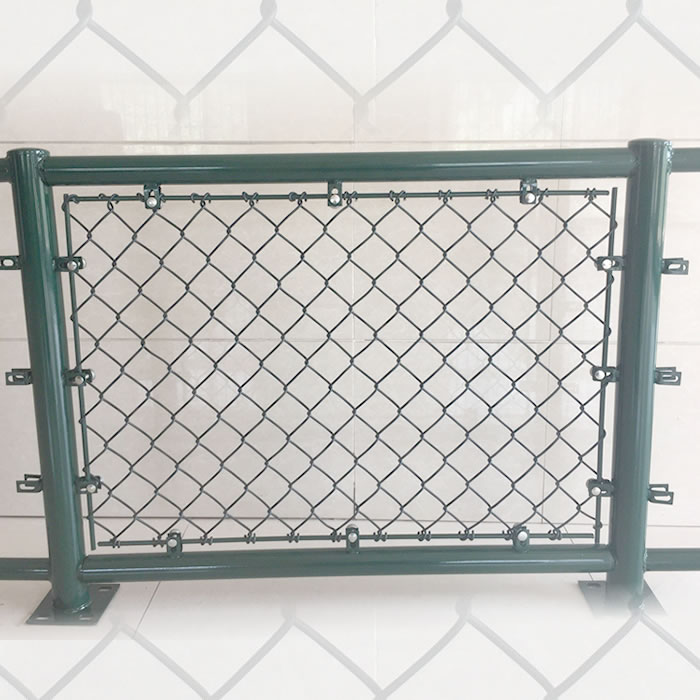

CHAIN LINK TEMPORARY FENCE PANELS

Portable Temporary Chain Link Fence Panels

Galvanized Mesh Temporary Fence Panels
Temporary framed chain link fence:
Meshes:
42”x50’ galvanized 11.5 gauge 2 3/8" opening, hot dipped galvanized zinc coating 244g/m2.
60”x50’ galvanized 12.5 gauge (2.51mm) 2 3/8" opening, hot dipped galvanized zinc coating 244g/m2
42”x50’ galvanized 11.5 gauge 2-1/4" opening, hot dipped galvanized zinc coating 244g/m2.
With 6’-.065 w/ 2 3/8” galvanized steel post

QUALITY STANDARDS OF GALVANIZED STEEL CHAIN LINK FENCE FABRIC

We manufacture galvanized chain link fence meeting or exceeding a variety of international standards.
Our fencing system include galvanized steel chain link fence fabric, also posts, straining posts, struts, base plates and other fittings.

Common quality we follow in supply of galvanized steel chain link fence for references:
We use quality mild steel wire materials tested for production:
The mesh wire and the line wire of the fabric shall be manufactured from galvanized steel wire, having a tensile strength within the range of 400 to 550 MPa.
Testings:
Mechanical testing of metals - Tensile testing: The tensile strength of mesh and line wire : within the range of400 to 550 MPa.
Simple torsion test for wire - The mesh and line wires on a length equal to 100 diameters between vices, shall withstand not less than 18 twists.
Wrapping test for metallic wire: The mesh wire and line wires, in wrapping test, the wires shall not break or split when wrapped eight times round its own diameter and subsequently straightened.
Bend Test -Mesh wire and line wire of 5 mm diameter and above shall be subjected to this test. The wire shall withstand being bent through an angle of 90° round a former of diameter equal to twice its own diameter without breaking or splitting.
Hot dipped galvanized coatings on round steel wires to meet related requirements
Electro galvanized coatings on round steel wire

Wire surface checking:
The wires shall be round wire and shall be free from irregularities, imperfections, flaws, sand splits and other defects. The zinc coating shall be smooth, even and bright.

Line Wires:
The fabric is provided with heavily coated galvanized line wires, to act as additional selvage to strengthen the fabric when used for fencing purposes or as per the requirement of the purchaser. The line wire may be supplied separately in coils/bundles/cut lengths to be used for fencing purposes. The line wires are required to be inserted
after erecting the fabric with straining posts. Two number of line wires for fabric of height upto 2 m to be provided one each at top and bottom of the fabric. Three numbers of line wire for fabric of height 2.50 m and more to be provided one each on top, middle and bottom of the fabric.

Mesh Size Checking:
The mesh size is determined by measuring the minimum clear distance between the wires forming the parallel sizes of the mesh when measured in normal stretched condition.

Fabric Size Checking:
The width of fabric refers the overall dimension from one extreme line wire to other extreme line wire and shall be checked in fully stretched condition. The fabric shall be manufactured in widths of 0.90 m, 1.20 m, 1.50 m, 1.80 m, 2.00 m, 2.50 m, and 3.00 m or as per the requirement of the purchaser. The tolerance on the width shall be + 0.7 of the mesh size.
Length of the fabric is commonly supplied in rolls of 5.0 m, 10.0 m, 15.0 m, 20.0 m and 25.0 m or as per the requirement of the purchaser.

Galvanizing Test on Complete Mesh Fabric
The line wire shall meet the requirements for hot dipped zinc coating of related international standards. The mesh wire withstands one dip of half-minute duration min.

We supply chain link fence fabric with heavy zinc coating meeting related American, UK and other international standards.

TERMINOLOGY
Chain-Link Fence Fabric — A fencing material made from steel wire helical wound and interwoven in such a manner as to provide a continuous mesh without knots or ties except in the form of knuckling or of twisting the ends of the wires to form the selvage of the fabric.
Selvage — Selvage is the type of twist on the top and bottom ends of the fabric.
Knuckling — The type of selvage obtained by interlocking adjacent pairs of wire ends and then bending the wire ends back into a loop.
Twisting — The type of selvage obtained by twisting adjacent pairs of wire ends together in a close helix.

FABRIC TYPES OF VARIOUS SELVAGES WE SUPPLY
Chain link fabric is supplied in any of the following types of selvages, as per the requirement of the purchaser:
Both ends of the fabric twisted;
One end of the fabric knuckled and the other end twisted;
Both ends of the fabric knuckled;
Both ends of the fabric without knuckling and twisting.

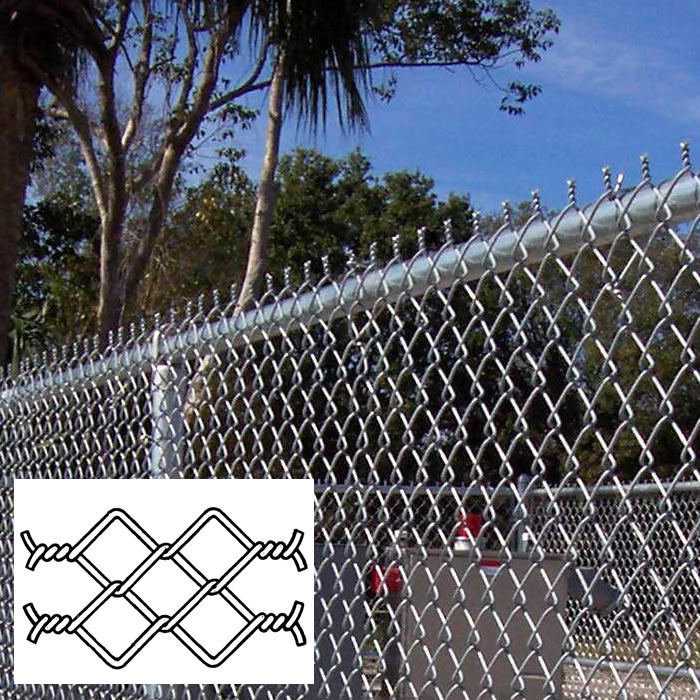

Both Ends Twisted
Chain Link Fence Fabric with Both Ends Twisted

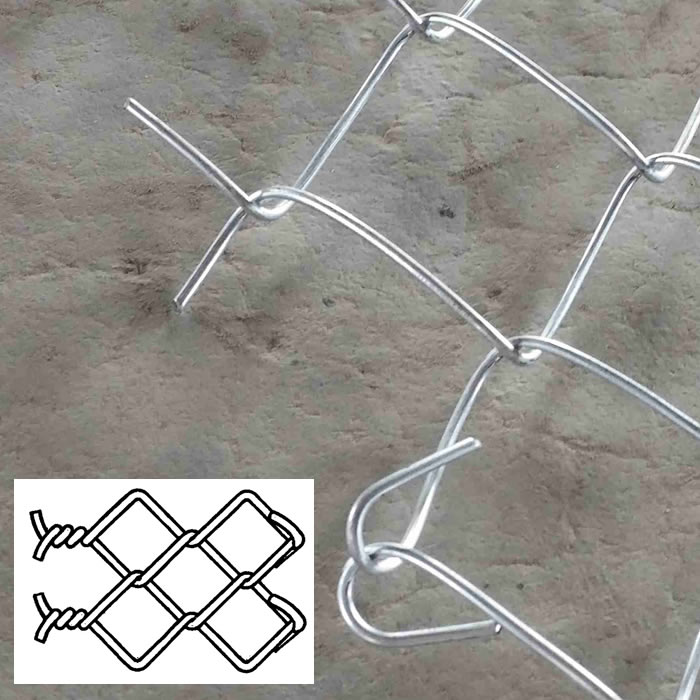

One End Twisted And One End Knuckled
Chain Link Fence Fabric with One End Twisted And One End Knuckled Selvage

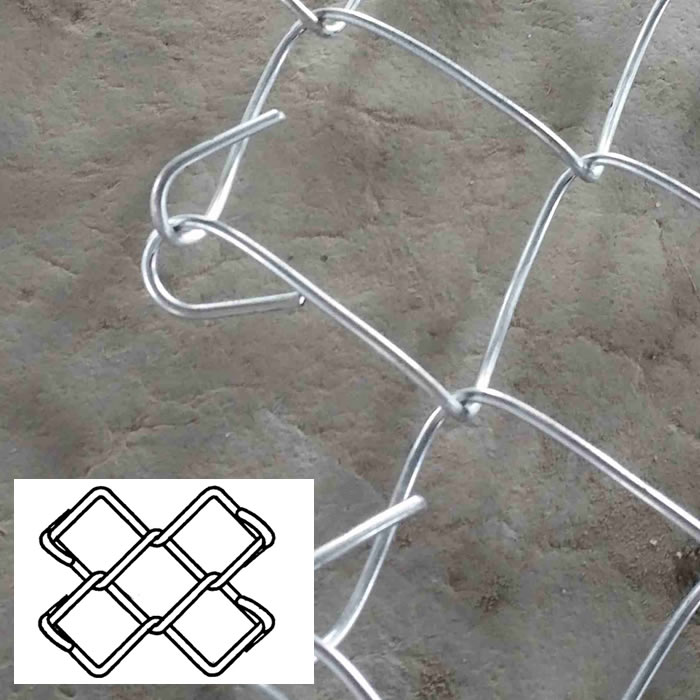

Both Ends Knuckled
Chain Link Fence Fabric with Both Ends Knuckled Selvage

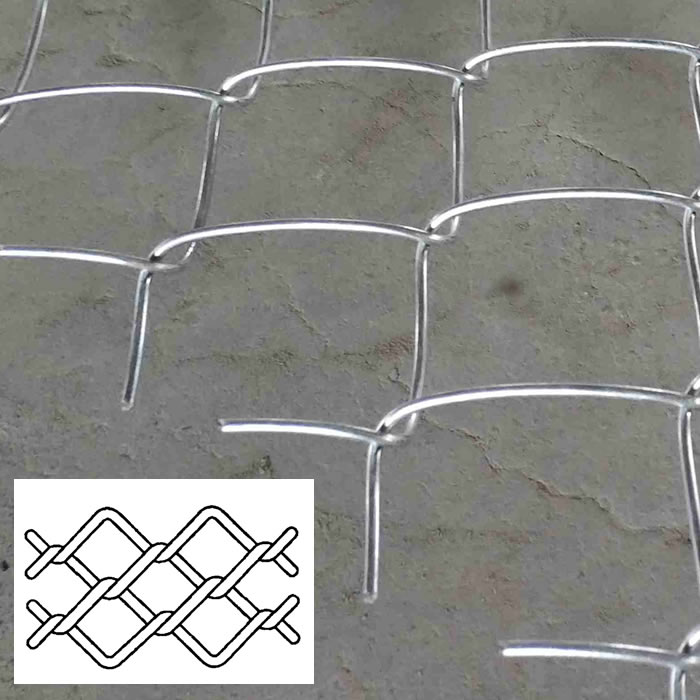

Both Ends Without Knuckling/Twisting
Chain Link Fence Fabric with Both Ends Without Knuckling/Twisting Selvage



We offer Galvanized Steel Chain Link Fence with Following Mesh Wire and Line Wire:

Mesh Size Nominal Diameter of Mesh Wire Line Wire
Diameter Number of Wires
mm mm mm Up to and including 2 m width Above 2 m Width
(1) (2) (3) (4) (5)
25±3 2.00 2.50 2 3
2.50 3.15 2 3
3.15 4.00 2 3
40±4 2.00 2.50 2 3
2.50 3.15 2 3
3.15 4.00 2 3
4.00 4.50 2 3
50±4 2.50 3.15 2 3
3.15 4.00 2 3
4.00 4.50 2 3
4.50 5.00 2 3
63±4 3.15 4.00 2 3
4.00 4.50 2 3
4.50 5.00 2 3
75±4 3.15 4.00 2 3
4.00 4.50 2 3
4.50 5.00 2 3
5.00 5.50 2 3
100±5 3.15 4.00 2 3
4.00 4.50 2 3
4.50 5.00 2 3
5.00 5.50 2 3
125±5 4.00 4.50 2 3
4.50 5.00 2 3
5.00 5.50 2 3
150±5 4.00 4.50 2 3
4.50 5.00 2 3
5.00 5.50 2 3

Sample: Provided.

We supply products with SHIPPING MARKS according to customers requirements, standard as following:
Each roll is provided with a metal or cloth label bearing the following information:
Manufacturer’s name and/or trade-mark,
Lot number and roll number,
Mesh size and diameter of line and mesh wires,
Length and width of the fabric, and
Any other particular specified by the purchaser.
