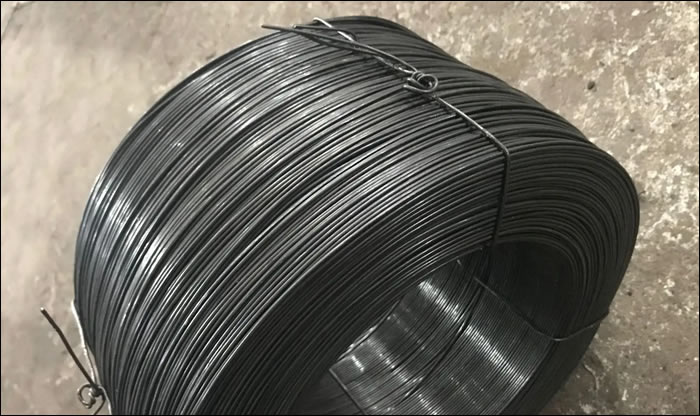

Galvanized and Ungalvanized High Carbon Steel Wire

Everbright supplies High Carbon Steel Wire in Grade 62, 72B, 82 and other grades, for making of mechanical springs, dynamic mechanical and still mechanical type.

High carbon spring steel wire is manufactured according to European standard EN 10270-1 from high class high carbon steel wire rods.

Finishes can be ungalvanized, electro galvanized, hot dipped, aluminized, phosphated.

Choice Materials - High carbon steel wire rods
We use choice high carbon wire rod for making high carbon steel wires:
Grade 62 rod diameter 5.5 mm
Grade 72 rod diameter 5.5 mm, 6.5 mm
Grade 82 rod diameter 8mm, 9mm, 10 mm, 11 mm

High Strength Carbon Steel Spring Wire, Pre Galvanized
Spring wire, Ø 0,80, zinc coated
Spring wire, Ø 0,90, zinc coated
Spring wire, Ø 3,10, zinc coated

High carbon steel wire, ungalvanized finish, for springs: Wire diameter, detail specification, uses and packing:

Size	Specification	Usage	Packaging
2.6mm	Ungalvanized High Carbon steel wire(SW-C) 2.6mm Usage : Clamp Dimension : -0.040 (ours 2.590mm) Ovality : max 0.040 (0.006) Tensile strength : 1670~1910N/mm^2 (1696) Torsion Value(turns) : min 15 (35) C: 0.690~0.760% (0.720%), Si: 0.150~0.350%(0.208%), Mn: 0.600~0.900%(0.679%) P: MAX 0.030% (0.021%) S: MAX 0.030 (0.005%)	Clamps	200kg roll
3.2mm	72B Ungalvanized High carbon steel wire (SW-C) 3.2mm Specification : KS D 3510 Usage : Tensile high quality springs, Pressured springs for washing machine.	High tensile springs	1 Ton carrier
3.8mm	Ungalvanized Steel wire carbon(SW-C) 3.8mm Specification : KS D 3510	High tensile springs	1 Ton carrier
2.0mm	72B Ungalvanized High carbon steel wire (SW-C) 2.0mm Usage : Clamp	Clamp ring	200kg roll
3.4mm	Ungalvanized High Carbon steel wire(SW-C) 3.4mm Usage : High tensile spring.(Rolled)	Rolled springs	1 Ton carrier
2.8mm	Ungalvanized high carbon steel wire(SW-C) 2.8mm Specification : KS D 3510 Usage : Tensile high quality springs, Pressured springs for washing machine. Tensile Strength : 1620~1860(N/NM^2), ours 1726 C : 0.690~0.760%(ours 0.740) Si : 0.150~0.350%(0.240), Mn : 0.600~0.900%(0.770), P : 0~0.030%(0.016), S: 0~0.030%(0.007) Torsion value(Turns) : 41 Ovality : max 0.040(0.010)	Rolled springs
2.6mm	Ungalvanized high carbon steel wire (SW-C) 2.6mm Usage : Tensile high quality springs, Pressured springs	Rolled springs	200kg roll
3.0mm	Ungalvanized high carbon steel wire Usage : U-shaped wire U-shaped wire It must be straight. No twisting or distortion.
0.40mm	High Carbon Electro Galvanized Steel Wire High carbon electro galvanized steel wire Size: 0.40mm T/S N/mm2 :2260 - 2550 Coil Diameter: 250 mm	Spring wire	30 kg coils

Aluminized High Carbon Steel Wire for springs
Material: High carbon steel
Wire diameter: 1.8mm
Finish: Aluminum coating

High Carbon Steel Spring Wire, Phosphated Finish
Carbon steel spring wire, Ø 2,00, phosphate coated
Carbon steel spring wire, Ø 2,50, phosphate coated
Carbon steel spring wire, Ø 2,80, phosphate coated
Carbon steel spring wire, Ø 3,20, phosphate coated
Carbon steel spring wire, Ø 4,00, phosphate coated
Carbon steel spring wire, Ø 1,80, phosphate coated
Carbon steel spring wire, Ø 3,00, phosphate coated
Carbon steel spring wire, Ø 3,50, phosphate coated
Carbon steel spring wire, Ø 3,60 , phosphate coated
Carbon steel spring wire, Ø 3,80, phosphate coated
Carbon steel spring wire, Ø 4,30, phosphate coated
Carbon steel spring wire, Ø 5,20, phosphate coated

Carbon Steel Wire Springs
Steel Wire Spring, Diameter 0.2mm
Material: C9Mn2
Tensile strength limit MPA: 2550 to 2746 KGF/mm2 / 2697-2893
Cutting stress MPA: 1422-1667 / 1417-1765
Torque elesticity limit MPA: 833.6-1030

Steel Wire Spring, Diameter 0.35mm
Material: C9Mn2
Tensile strength limit MPA: 2550 to 2746 KGF/mm2 / 2697-2942
Cutting stress MPA: 1373-1667 / 1422-1716
Torque elesticity limit MPA: 853.2-1049

Steel Wire Spring, Diameter 0.45mm
Material: C9Mn2
Tensile strength limit MPA: 2550 to 2746 KGF/mm2 / 2697-2893
Cutting stress MPA: 1422-1667
Torque elesticity limit MPA: 833.6-1030

Steel Wire Spring, Diameter 0.55mm
Material: C9Mn2
Tensile strength limit MPA: 2648 to 2844 KGF/mm2 / 2550-2746
Cutting stress MPA: 1417-1765
Torque elesticity limit MPA: 863.0-1059
