Galvanized iron wire, soft annealed, electro galvanized and hot
dipped galvanised, pvc or epoxy coated into colors. Made of high carbon, medium and low carbon steel.

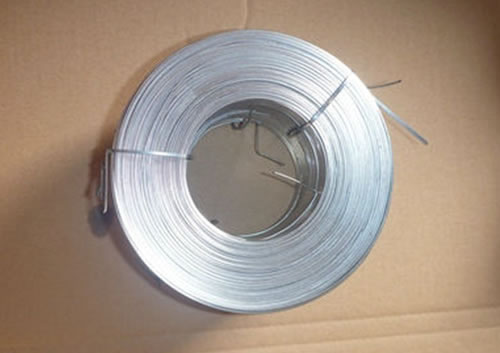

Galvanized Flat Stitching Wire


Everbright offers bright galvanized flat stitching wire and copper coated stitching wire. The galvanized stitching wire can be also supplied with round, triangle or trapezoid type.

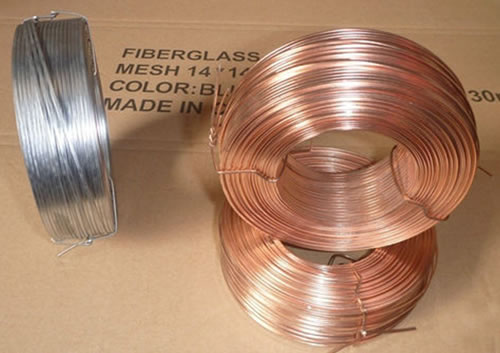

GALVANIZED FLAT STITCHING WIRE with Copper Plating:
Wire Gauge Type:16#  17#  18#  20#  21#
Wire Width:2.15mm---1.1mm Wire
Thickness:1.5MM---0.3MM
Nails Coil Weight:2.5kg
Use: For packing of cartons.
Note: Copper coated and electro galvanized flat wire can be made flat, triangle or trapezoid type.

Galvanized Flat Stitching Wire without Copper Coating:
Material: high quality low carbon steel wire
Surface treatment: galvanized or copper coated
Wire diameter: 0.1mm-5.0mm
Wire Length per coil: 20m-500m
Weight per coil:0.5kg-100kg or as your requirement
Packing: plastic reel ,plastic bag ,carton box or as your requirement
Loading quantity in 20'container:20-25tons

Galvanized Flat Wire for Stitching Uses
Galvanized Flat Wire for Stitching Uses

Steel Flat Wire with Zinc Coating Galvanized
Steel Flat Wire with Zinc Coating Galvanized



Copper Coated Galvanized Flat Wire for Stitching
Copper Coated Galvanized Flat Wire for Stapling

Galvanized Wire Material for Processing of Stitching Wire:

We can supply electro galvanized iron wire processed with low/hign carbon steel wire, through drawing and electric galvanizing, for processing of stitching wire.

Technical Information:
Material: super carbon steel Electro Galvanized Wire, Zinc coating: 10g/m2—40g/m2
The standard Wire gauge from BWG8—BWG33
Tensile Strength is 300-550Mpa, 650-1300Mpa
Firmed Coating Layer
Super in corrosion resistance
The Single roll wire without any inter-cuts or breaks

Application:
Carbon steel galvanized wire round section is used in weaving wire mesh, construction building, while galvanized wire in flat section is mainly used in binding or stitching.

Production Process of Galvanized Stitching Iron Wire:
Steel rod coil -- Wire Drawing -- Wire Annealing--Rust Removing-- Acid Washing-- Boiling-- Drying-- Zinc Feeding-- Wire Coiling - Flattening - Cutting - Bending
