Galvanized iron wire, soft annealed, electro galvanized and hot
dipped galvanised, pvc or epoxy coated into colors. Made of high carbon, medium and low carbon steel.

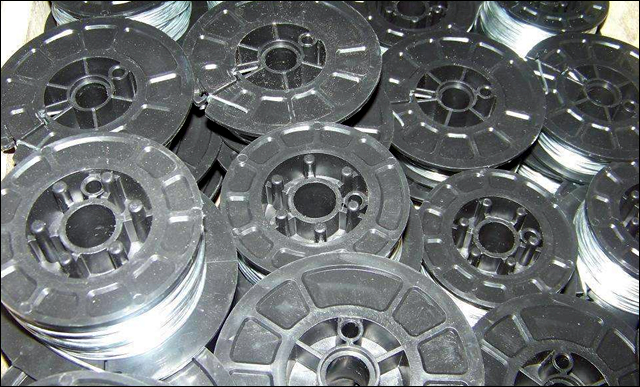

Spool Wire - Galvanized iron Spool wire - Annealed Iron Wire on Plastic spools



We offer spool wire made of electric galvanized steel wire, hot dipped zinc coated wire, bright annealed wire and stainless steel wire.
Spools can be different sizes, upon your request.
Spool wire is usually used as weaving wire for making of wire mesh, tie wire and various industrial products.

Annealed and Galvanized iron spool wire

Galvanized iron spool wire refers to the galvanised iron wire material wound on spools ready for production of wire scourers, armouring wires, wire netting and other wire products.

Hot Dipped Galvanized mild iron wire on spools

Galvanized iron spool wire for galvanized wire mesh weaving
Uses: High tensile fencing wire, mesh wire
Material: Mild steel wire
Zinc coating min. 25 g/m2 (hot dipped)
Tensile strength 300-400 N/mm2
Elongation min. 15%
Bright surface
Wound on spools of +- 14 kg (DIN 200 or similar)
Usage: Spool wire used as armouring wires for cable, for mesh netting and filter cloth.
Wire Diameters (tolerance +- 0.005) :
0.24 mm
0.26 mm
0.35 mm
0.45 mm

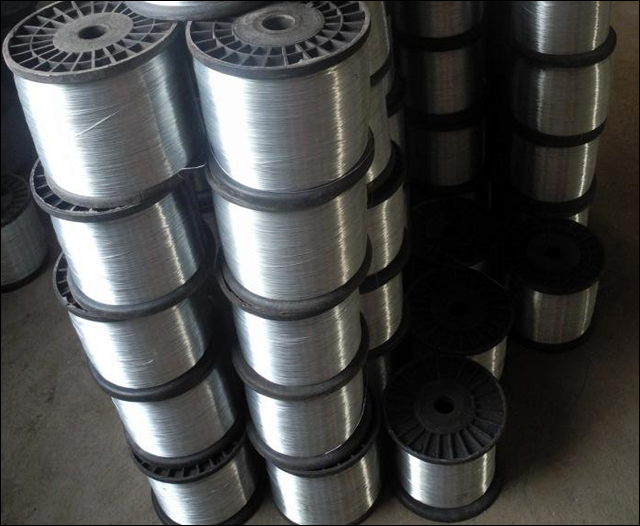

Hot Dipped Galvanized Spool Wire
Wire Gauge 24 #
Zinc coating: 50g/sqm.
Packing on spool.

Electro (cold) galvanized wire on spools

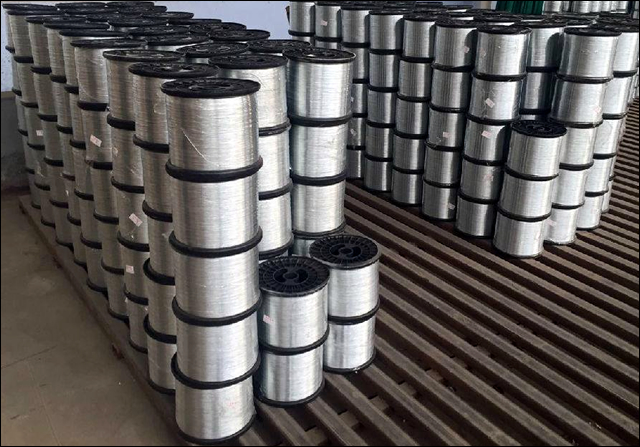

Galvanized iron spool wire
Bright Galvanized iron spool wire - on plastic spool, Wire Diameter: 0.24 mm (tolerance +- 0.005 mm)
Zinc coating min. 10 g/m2
Bright and shiny surface
Tensile strength +- 650 N/mm2
On spools +- 14 kg (DIN 200 or similar)
Usage: For production of knitted scourers
Wire range: 0.1 - 0.4mm

Galvanized Spool Wire for Garden Ties

Galvanised spool wire for garden tying
Binding wire

Black annealed wire in 25lb spools / reels
Soft Black Annealed Steel Wire produced from wire rod C-1006 max.
Wire size: 0.0475 inches [1.21mm]
Size Tolerances: plus/minus 0.001 inches /0.03mm
Tensile Strength Ranges and Limits:
Min: 40,000 psi (28.00kgf/mm2)
AIM: 45,000PSI (31.00kgf/mm2)
Max: 50,000 psi (35.00kgf/mm2) 25 pounds of wire per spool

Sizes of spool:
Flange Diameter: 11 3/4" , Drum: 8 1/4 Arbor (hole) 2" Between Both flanges: 3 3/8

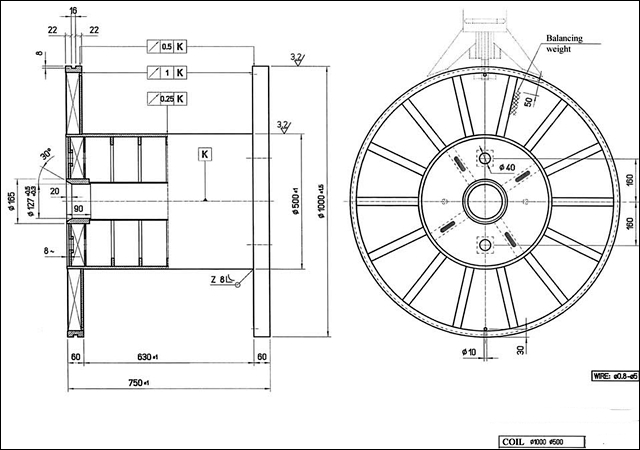

Spool, sidewall diameter 1000 mm
Spool, sidewall diameter 800mm



Spools for annealed spool wire

Annealed iron spool wire

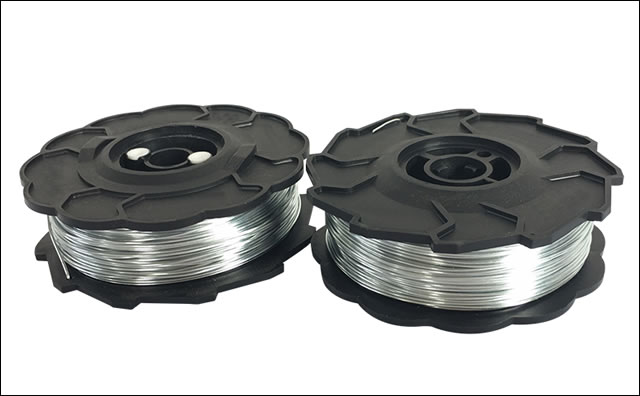

Annealed Galvanized Spool Wire for Bar Ties

Galvanized Annealed Bar Ties for Auto Rebar Tying Machine
Galv. steel wire for rebar tying

For our Spool Wire, send email to: sale@galvanized-wire.com
