Galvanized iron wire, soft annealed, electro galvanized and hot
dipped galvanised, pvc or epoxy coated into colors. Made of high carbon, medium and low carbon steel.



Razor Wire

We supply razor wire for customers in a variety of razor types including long blade, medium blade and short blade.

Razor Wire is supplied in straight line, crossed type and concertina coils for a wide use of fencing and security uses.

Razor Wire Fencing:
Razor wire can be used together with woven wire fences or welded wire fences to strengthen the security and safety of the surrounding sites. Two pieces of stainless steel razor wire or zinc-coated galvanized razor wire can be bounded together by clips to make it stronger. The spiral intersecting concertina razor wire presents an intersecting shape after opening with beautiful outlook and practical property.

Razor wire can be supplied in flat-wrap panel forms. Flat wrap razor wire is used along fence tops to provide further security.

The razor wire can be welded in square hole pattern to form a square or diamond hole welded razor mesh, serve as security mesh panels for guarding and fencing uses outside of common mesh fences.

We also supply Mobile Security Razor Wire Barrier System for military and border defense uses.

Materials: Galvanized sheet and stainless steel sheet.

Export Products Details

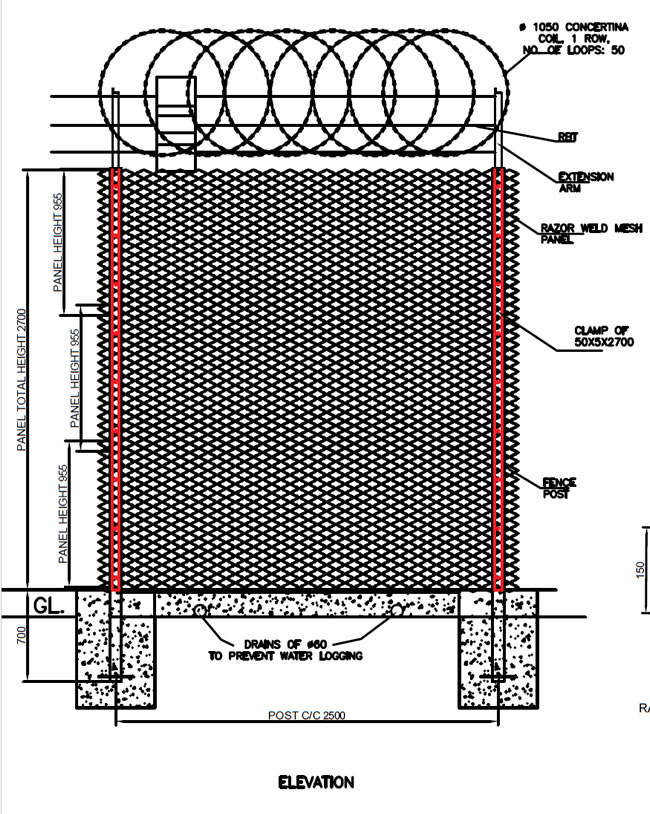

High Security Razor Wire Mesh Fencing System ( Razor Mesh Panel + Razor Wire Coils Tops)

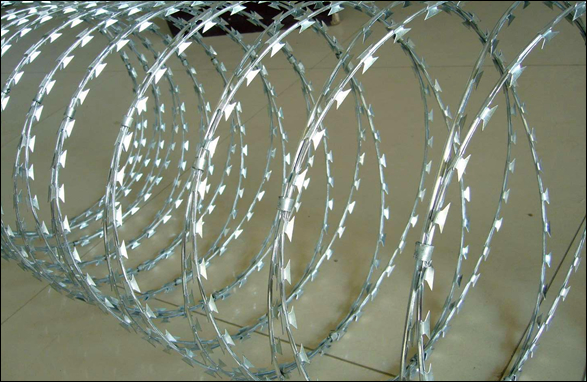

Razor Wire Concertina Coil

Hot Dipped Galvanized Razor Wire Concertina Coils
1050 mm Dia / 56 turns/ 2.5 mm core wire concertina, supplied with Posts and Y Arms Support, used with a variety of mesh panels ( chain link mesh, welded wire mesh, welded razor mesh) for high security fencing applications

Details:
Coil Diameter:1050 mm
Core wire Diameter: Min 2.5 mm
Material of Core wire:Hot Dipped GI (min 275 gsm)
Material of Strip: Hot Dipped GI (min 275 gsm)
Material:Hot Dipped GI (min 275 gsm)
Weight:15.2 ± 5%
Length when stretched:10-12 m
Number of turns / loops:56.
Blade profile: Tear Blade

Tear Blade profile
Blade Length: Minimum 22mm
Tear Blade Thickness: Minimum Thickness of 0.5mm
Material Hot Dipped GI (min 275 gsm)

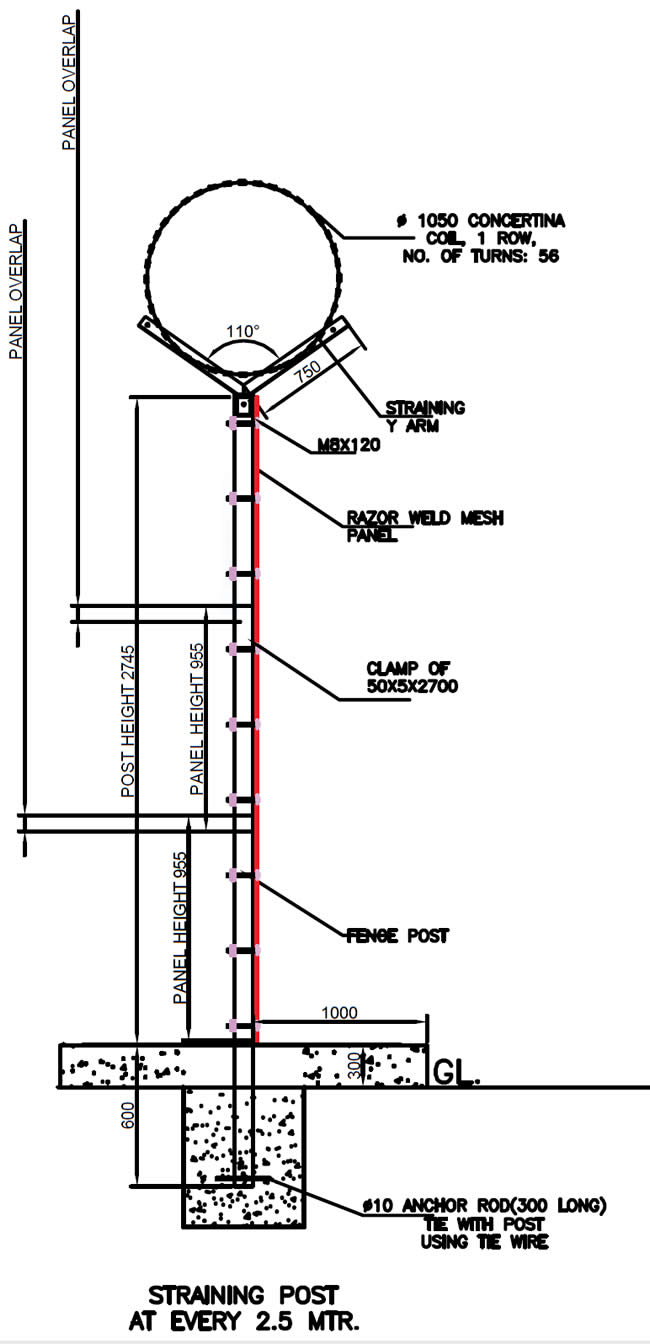

Supplied with Fence Post
Type: Circular / Round Hollow
Material: MS steel Tube (IS 1161).
Dimensions:76mm Dia, 3.2 mm ( +/- 10%) Thickness.
Length:3345mm (+/- 5%) (2745 mm above ground level + 600 mm under the ground level).
Zinc Powder Coating: Hot Dip galvanized to minimum 350 GSM as per IS 2629/ IS 4759/ASTM A 123
Holes: Suitable holes of proper size to match the mounting of the clamps to be provided.

Clamps:
To tighten the mesh panel along the post with GI strip 50 x 5 x 2700mm with 9 holes will be provided. Along with the clamp 9no of Mushroom Head Bolt (M8X120) with breakable head safety nut and washer (Material: SS 304, OD : 15.89mm, ID : 8.38mm, thickness ; 2.04mm.)will be provided.
Coating: Hot dip galvanized.

Y-Arm
MS Angle Size: 50x50x5 mm.
Length 750 mm of one arm.
Coating: Hot dip galvanized to 350 GSM Hot Dip Galvanizing as per IS 2629 / IS 4759 /ASTM A 123
Outer diameter: 63 mm of sleeve cap, Bolted on the top of the fence post. Straining post will be installed at every 30 meters.
Accessories for fitting Y Arm: Mushroom Head Bolt with breakable head safety nut (M8X120) (2 Nos per post)
Material: MS, IS 2062, galvanized

Fitting: Anchor Rod 10 mm dia 300 mm long GI Rod tie with fence post at bottom using tie wire.

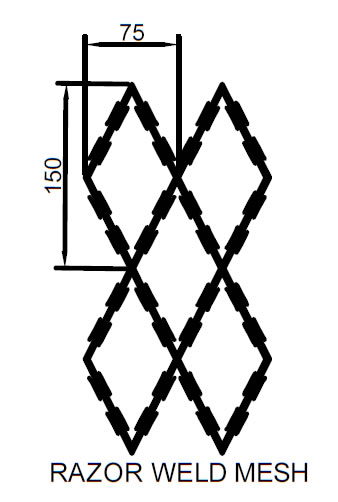

Razor Welded Wire Mesh

Razor Weld Mesh panel made with Medium Blade Profile Razor Tape

Detail: BTO-22 blade razor wire mesh
Core Wire: Horizontal wire, Dia 2.5mm (+/- 0.05mm) ; min 0.5mm (+/-0.05) thick tape
Razor Tape blade: Min 0.5mm (+/-0.05) thick tape
Panel size :955×2500mm
Material: Hot dipped GI : 275gsm (min.)
Weld mesh Size: Mesh Size of 75 X 150mm with mesh opening pf diamond/rhombus shape
Metallic Coating:
Razor Strip sheet: 0.5 (+/-0.05)mm Hot dipped GI (min 275 gsm)
Core wire : 2.5 (+/-0.05)mm Hot dipped GI (min 275 gsm);
Note: Three panels to be used to get a vertical height of 2700mm

High Security Fencing Mesh Panels with Y Arm Mounted Concertina Razor Wire Coils

Stainless Steel Razor Blade Concertina Wire

Stainless steel razor wire exported to American, details referring to information attached:
Security Fence Top SS Razor Blade Concertina Wire and Barbed Wire

In above project, both razor / concertina wire and barbed wire are both used as chain link fence tops. Materials supplied in GI and SS.



High Security Concertina Wire, SS 300 Grade

Barbed tape Material:Stainless steel AISI 300 series compliant with ASTM A666
Barbed tape thickness (mm) :0.6 +/- 0.05
Barb Width (mm): 21+/-2
Barb length -tip to tip (mm) : 65 +/- 2
Barb spacing (Cluster of 4) :100+/-2
Concertina clip minimum pull load (kgs) :181.44
Coil Diameter (mm) At Packing Status:(762 +/-50.8)
Coil Loops 101
Coil Spacing (mm) 305+/-50.8
Roll Length (m) 15 +/- 3.0
Minimum Tape Material wide prior to forming: 1.21 inch. (30.73 mm)
Note: This is Non-reinforced concertina razor barbed wire, no core wire, supplied in single coil.

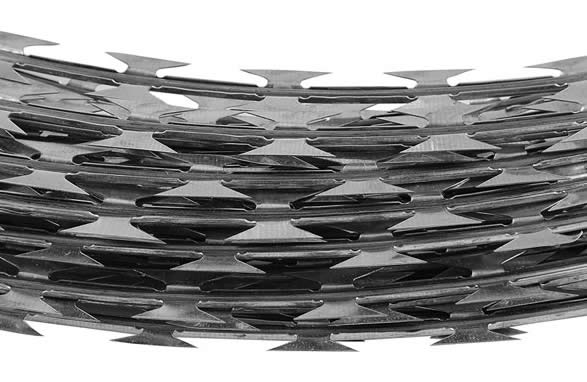

BTO-22 Concertina Razor Barbed Wire

Stainless Steel 304 Blade Razor Barbed Tape
Stainless Steel BTO-22 960mm diameter military concertina razor barbed wire
Packed in rolls.
Razor Blade Tape Material: SS AISI 304, also available: Hot Dipped GI (min 275 gsm)
Blade profile: Medium blade barbed tape
Core wire Diameter:2.6 ± 0.035 mm Dia.

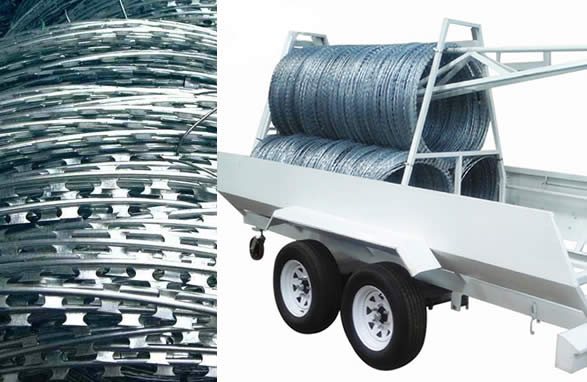

Mobile Razor Wire Trailer for Emergency Control and Military Uses

Rapid deployment razor tape security barrier
Mobile Razor Wire Trailer (including barrier module 100 meter)
We supply rapid deployment razor barbed wire barrier system used for riots, border control, battlefields and road isolation. Razor wire trailer is one kind of equipment & parts used in security field for Police and Military Forces in Africa and middle east. Details:
Razor wire module barrier:
1. Diameter of razor wire coil: 700 mm or 900mm
2. The length of the barricade minimum: 120 meters (3 x @ 40 m)
3. The width of the barricade: 1.4 to 1.5 m
4. High barricades: 1.5 to 1.7 m
5. Type / Thickness of Blades / thorns: Concertina Coil / 0.45 to 0.5 mm
6. The number of spirals: 55 of each coil (each 10 meters)
7. Razor wire: BTO-22, BTO-18, BTO-12
8. Material: stainless steel wire or iron wire
9. Surface treatment: Electro galvanized, Hot dipped galvanized
10. The coated layer of galvanized / Zinc :135-145 g /m²
